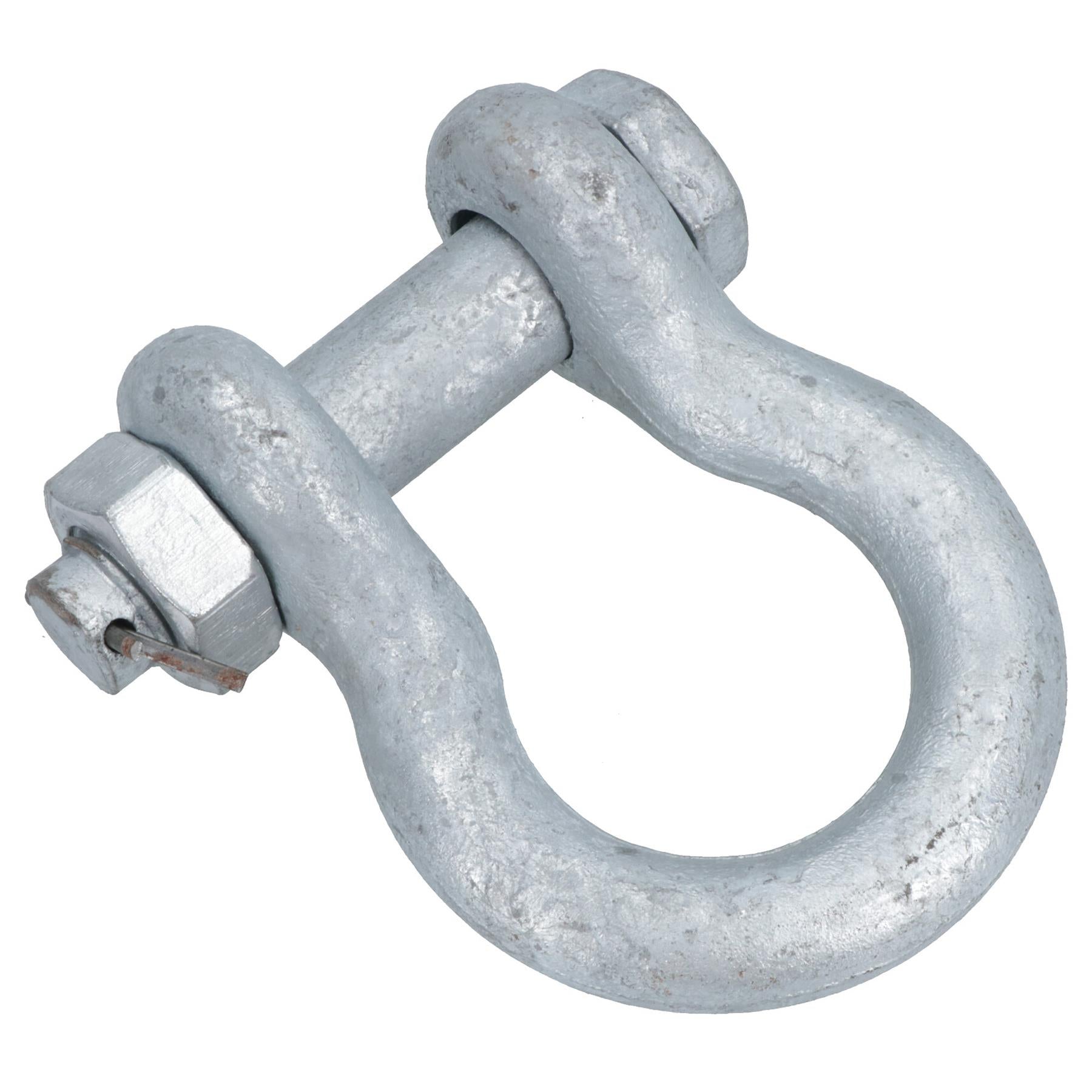

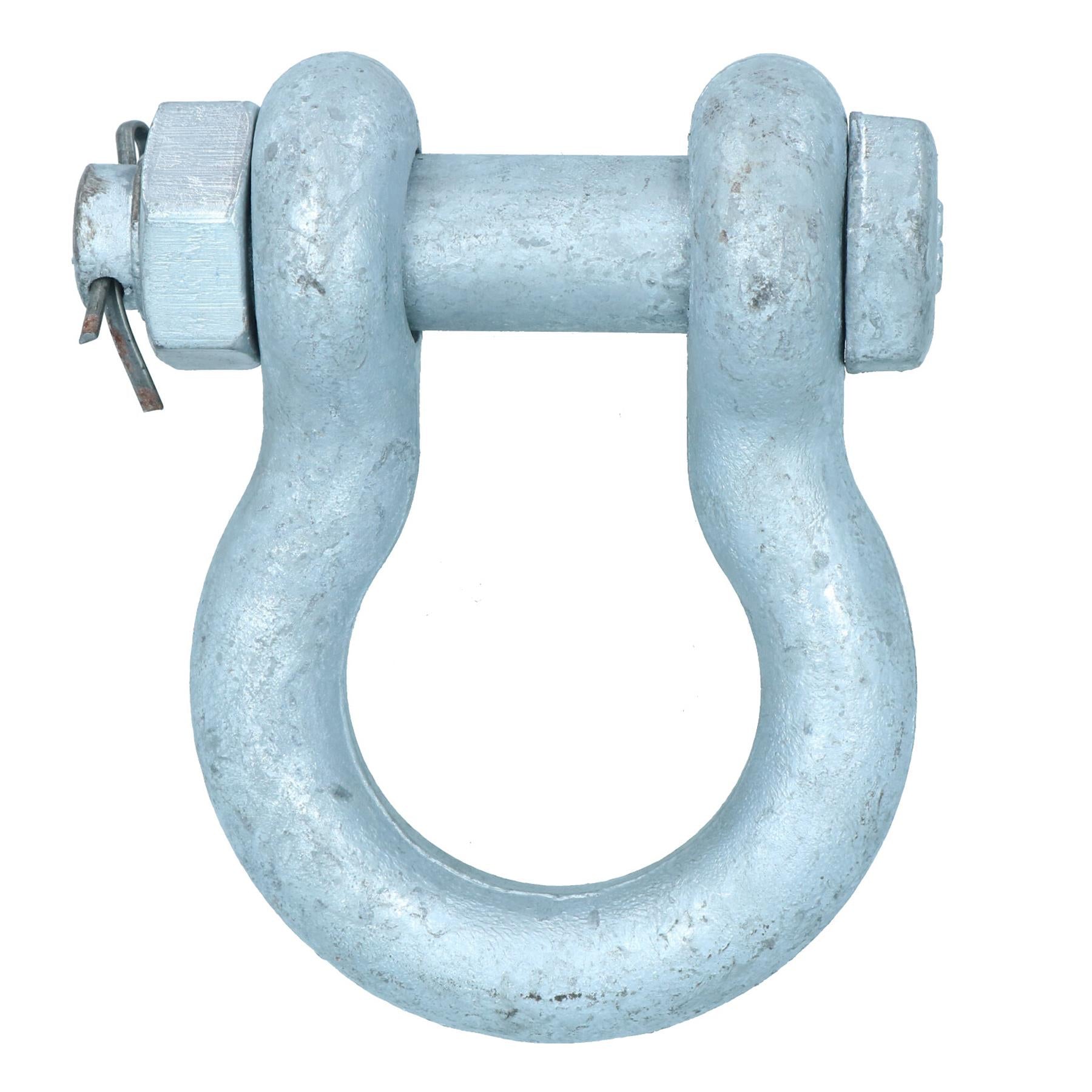

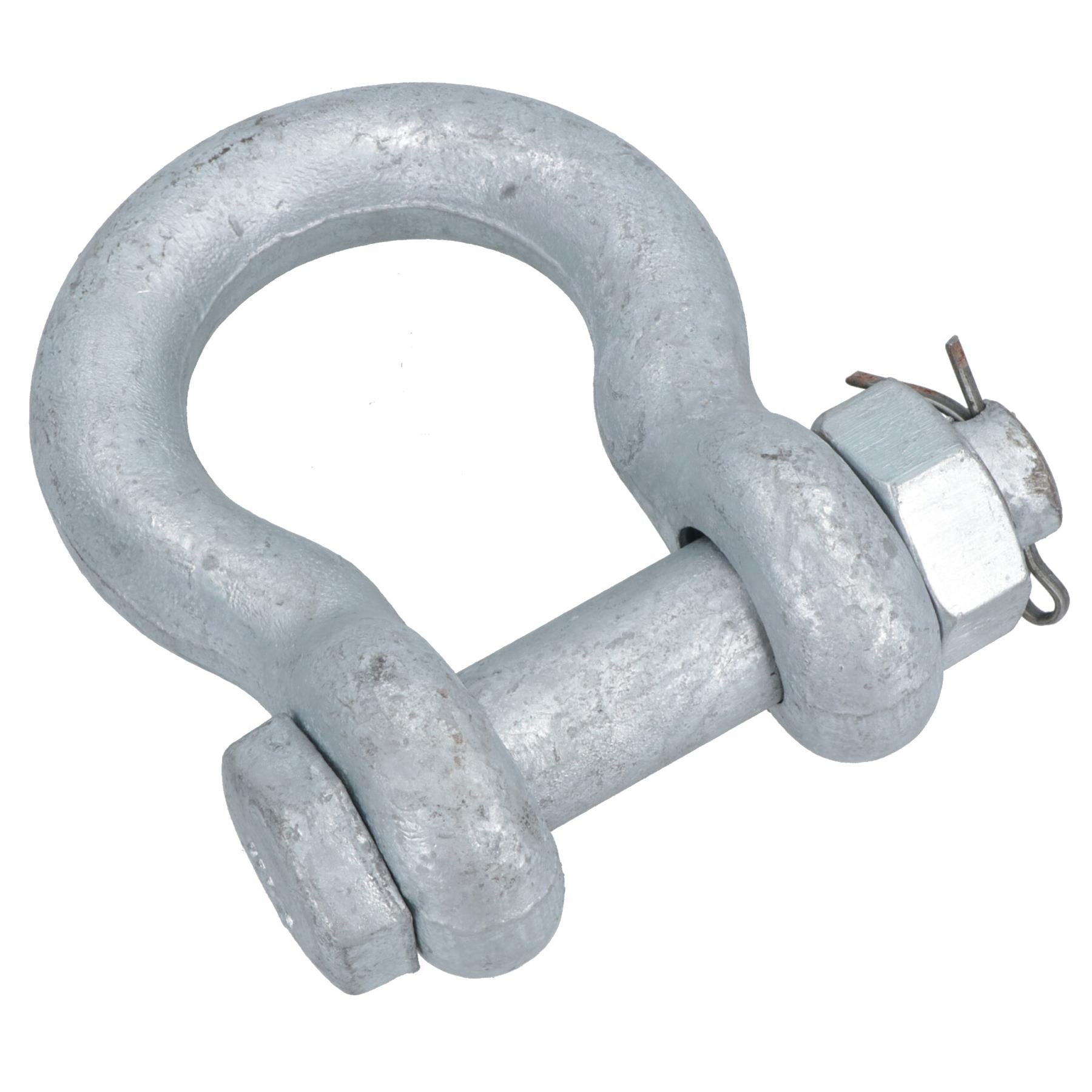

Galvanised Bow Shackle Safety Pin 1-1/8in (28mm) 9.50T to US Fed Spec

Galvanised bow shackle with safety pin to US. Fed Spec RR-C-271.

Safety shackle pin is secured with a nut and split pin for security - the split pin prevents the pin coming loose.

Galvanised Alloy Steel.

9.50T S.W.L
1-1/8in (28mm) shackle diameter.
1-1/4in (31mm) pin diameter.
108mm max internal length (approx 4-1/4in)
46mm internal width at entry to the bow shackle. (approx 1-3/4in)
190mm overall length.
