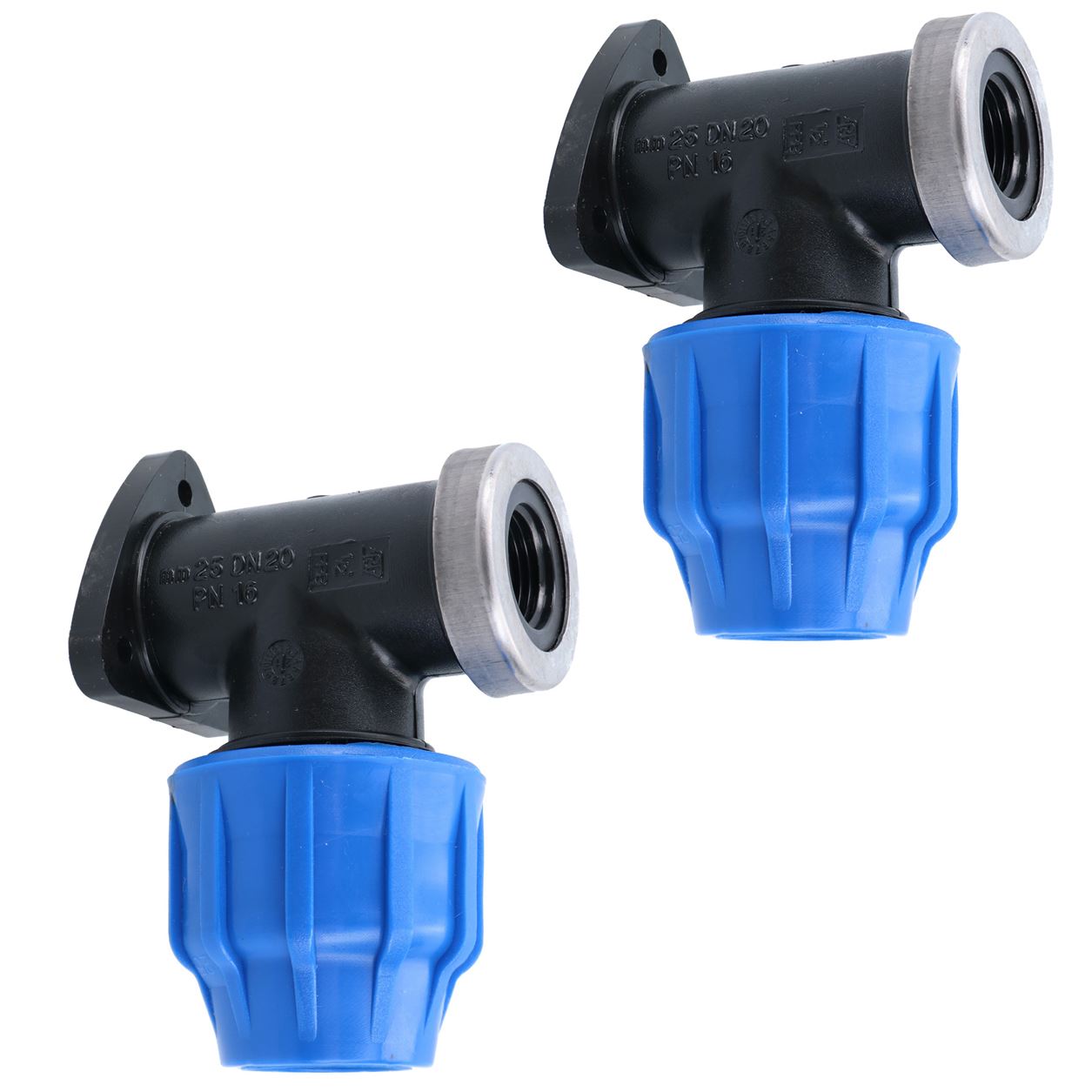

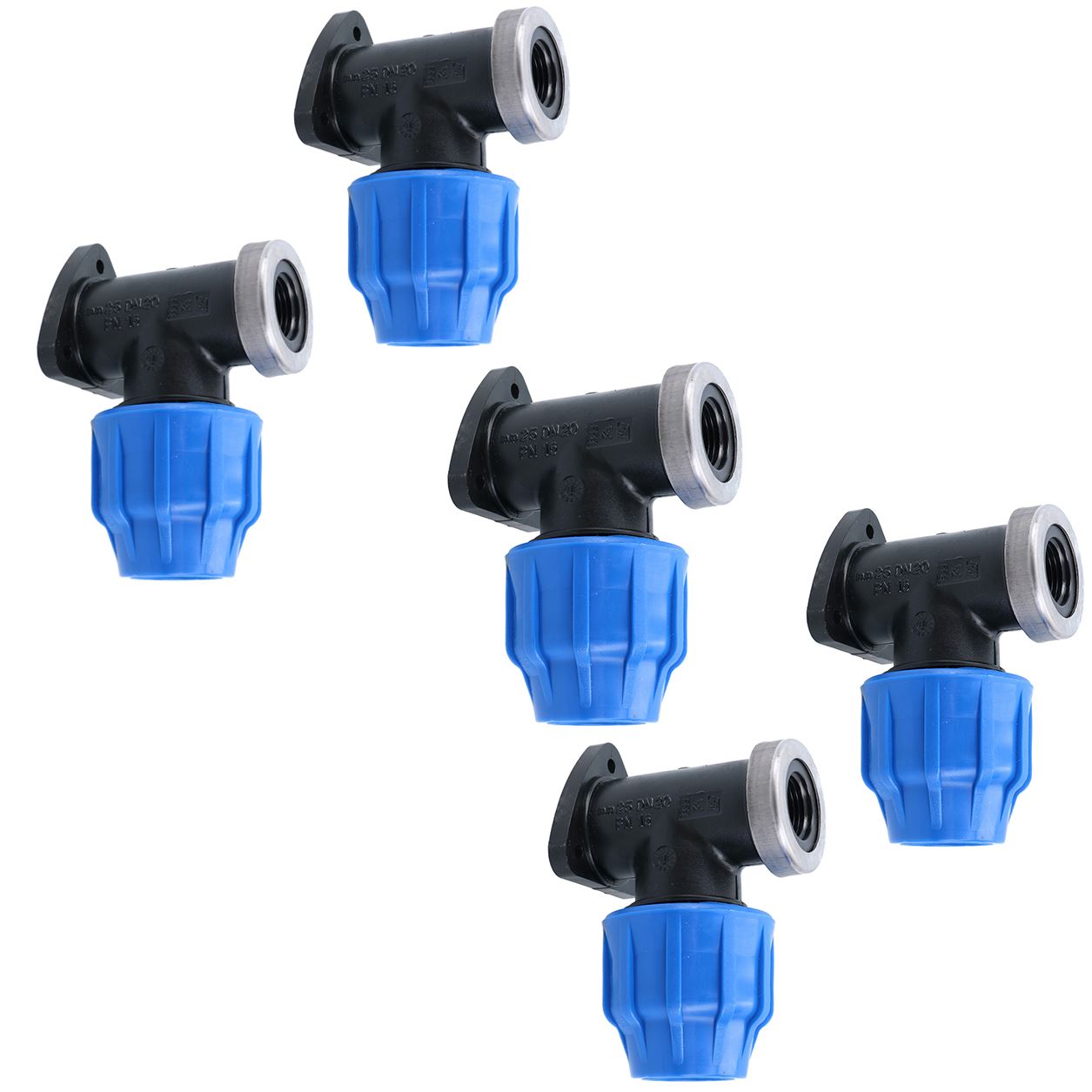

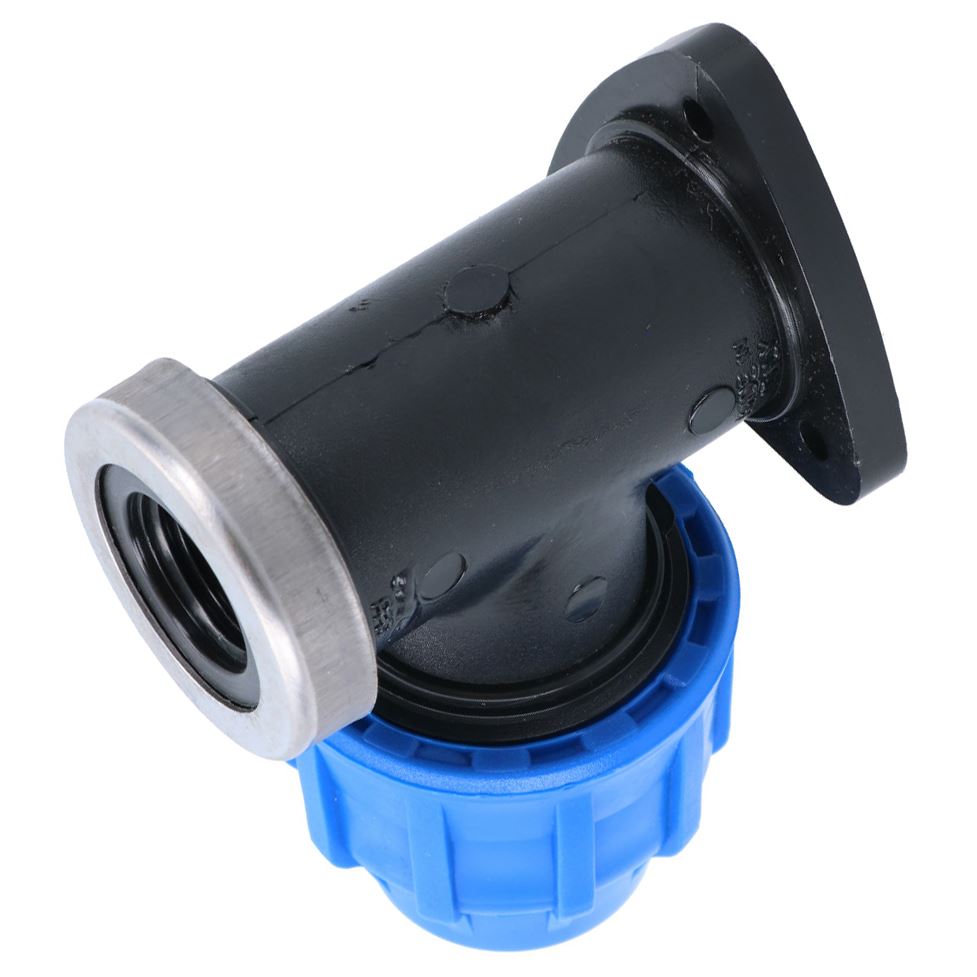

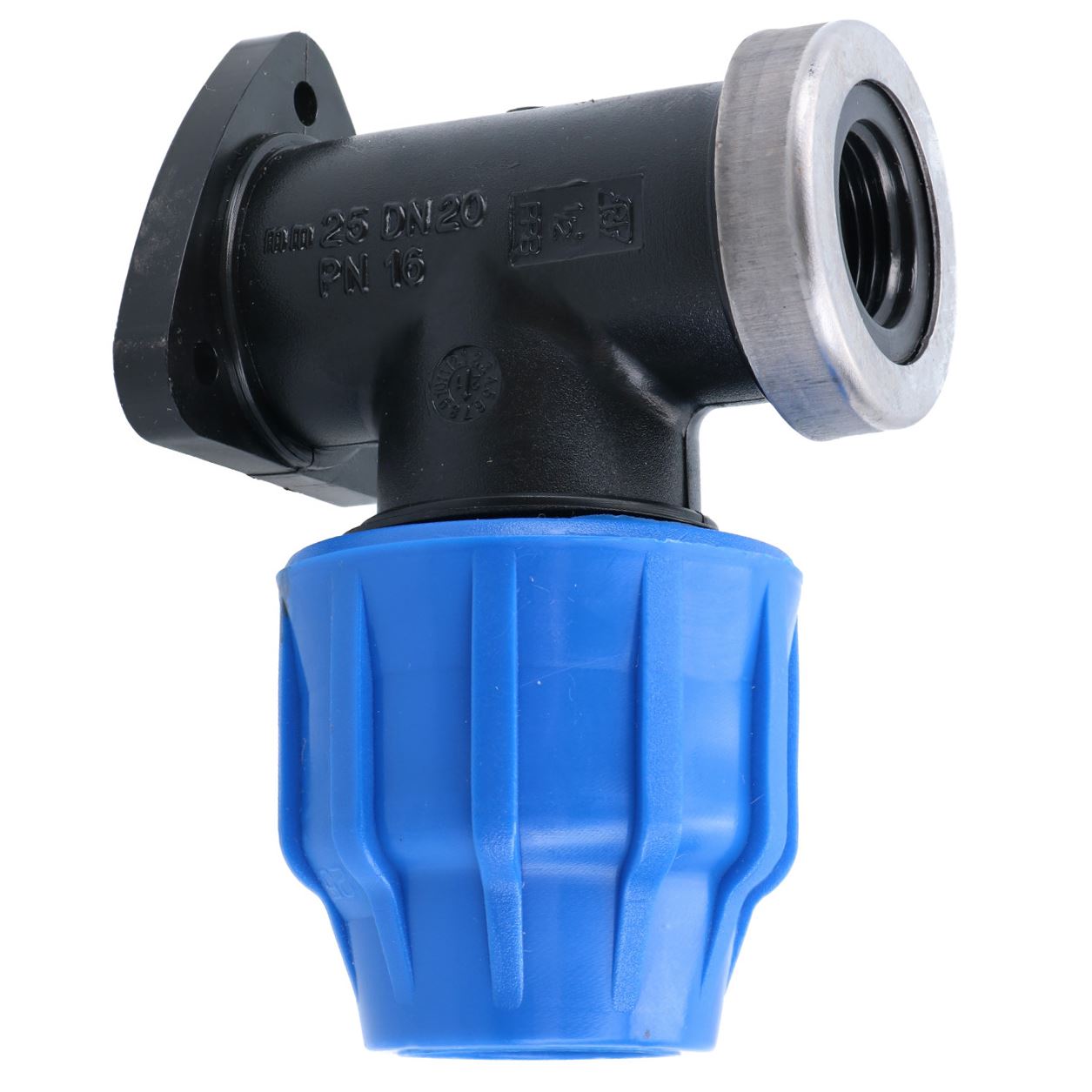

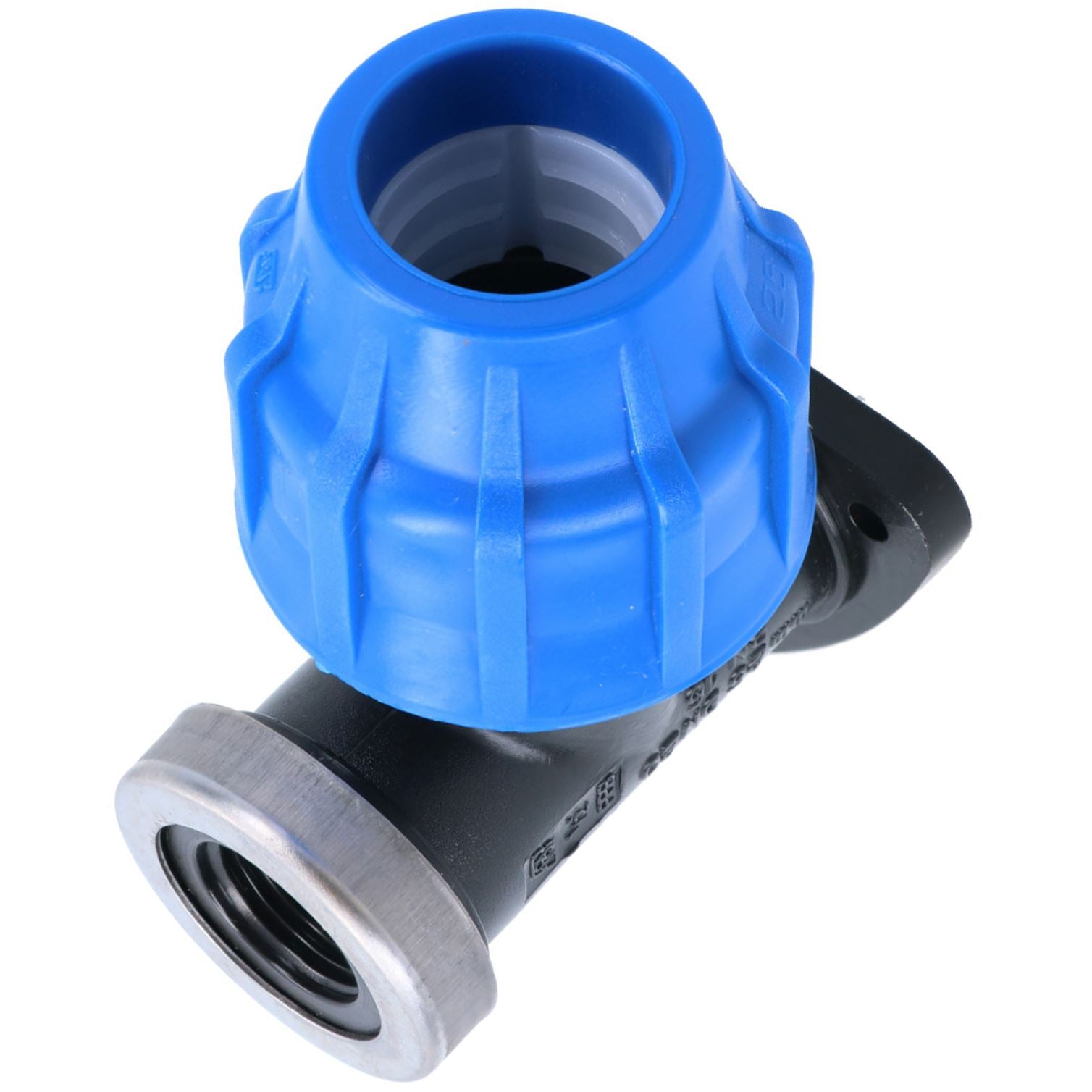

20mm x 1/2" MDPE Wall Elbow Outside Tap Fitting Threaded Connector Bend

20mm x 1/2in MDPE Wall Plate Elbow Fitting

For use with MDPE (Medium density polyethylene) pipe

Connects 20mm pipe to 1/2" threaded pipe or tap

Performs well under pressure, with impact resistant nut & body

Ideal for underground cold water systems

Use to install an outdoor tap

Wall-mounted plate for fixing to outside wall/surface

Can withstand high levels of thermal and mechanical stress

SPECIFICATIONS

• MDPE 20mm to 1/2in pipe elbow
• Wall mountable elbow
• PN16 Rating

• Pressure Rating: 16 bar.

• Safety Factor: 3.

• Operating Temperature: 20°C @ 16 bar, 45°C @ 10.8 bar, 70°C @ 3.4bar.

Standards: UNI 9561-9562, UNI EN 712-713-715, UNI ISO 7/1, ISO 14236, UNI 2233.

This is a multi variation listing for 3 different pack sizes, simply click on the tab above to select the correct pack size required
