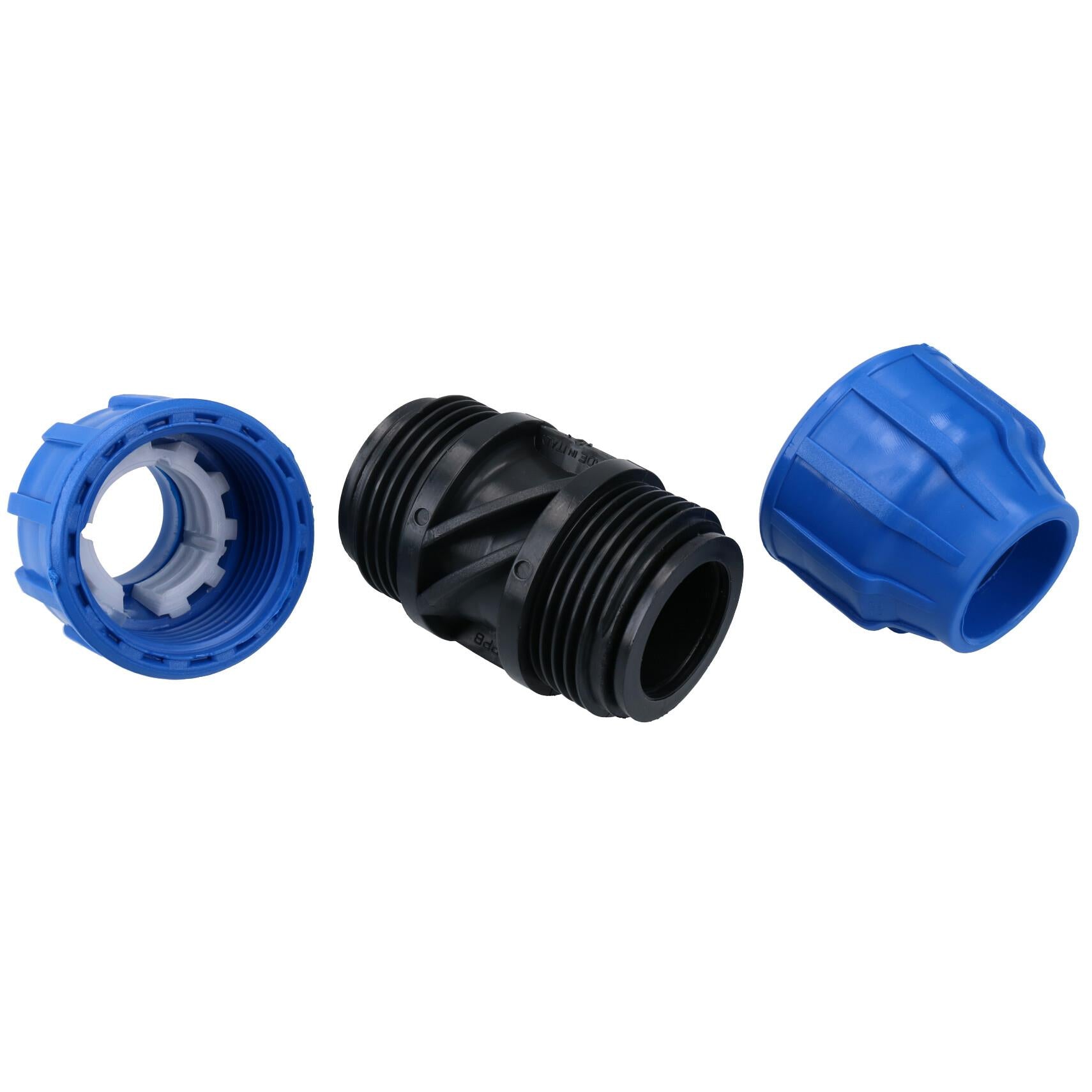

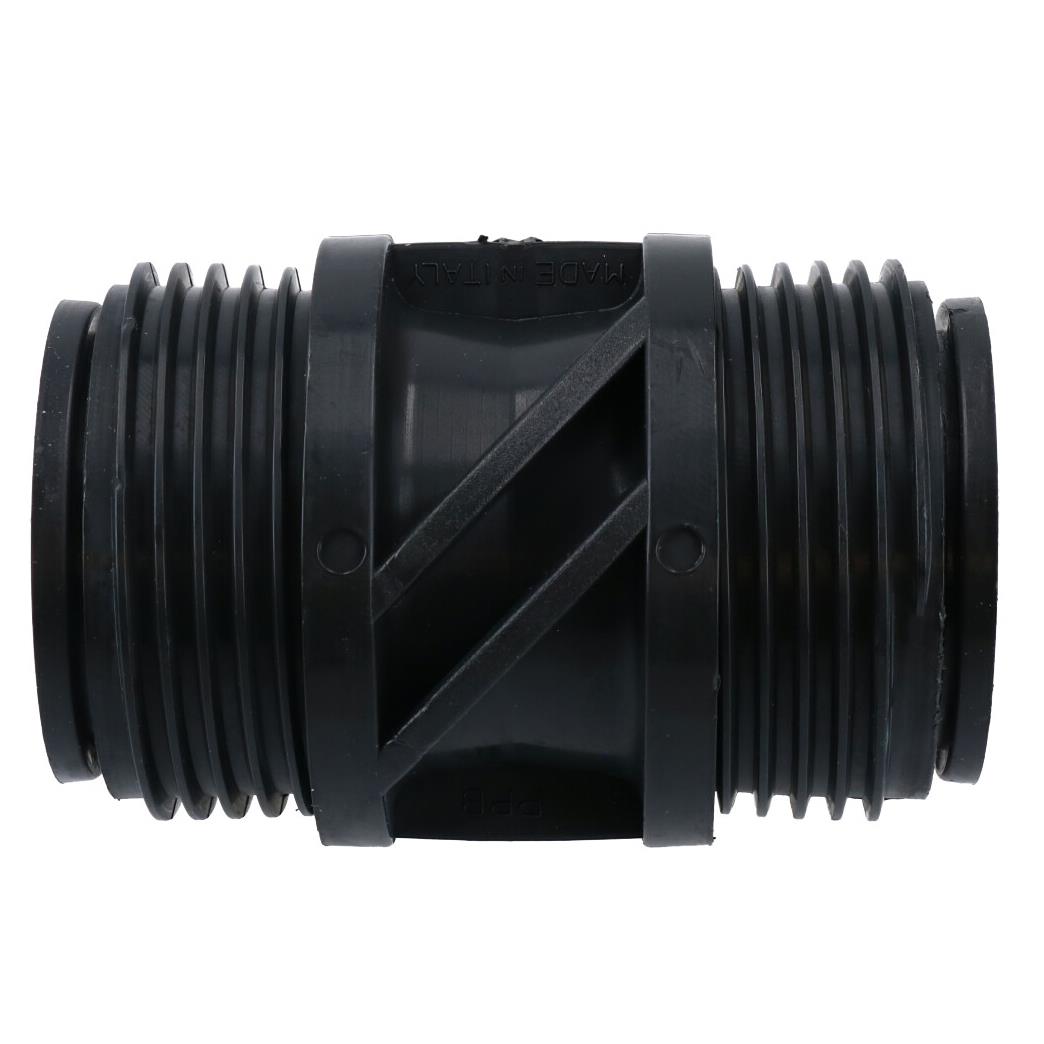

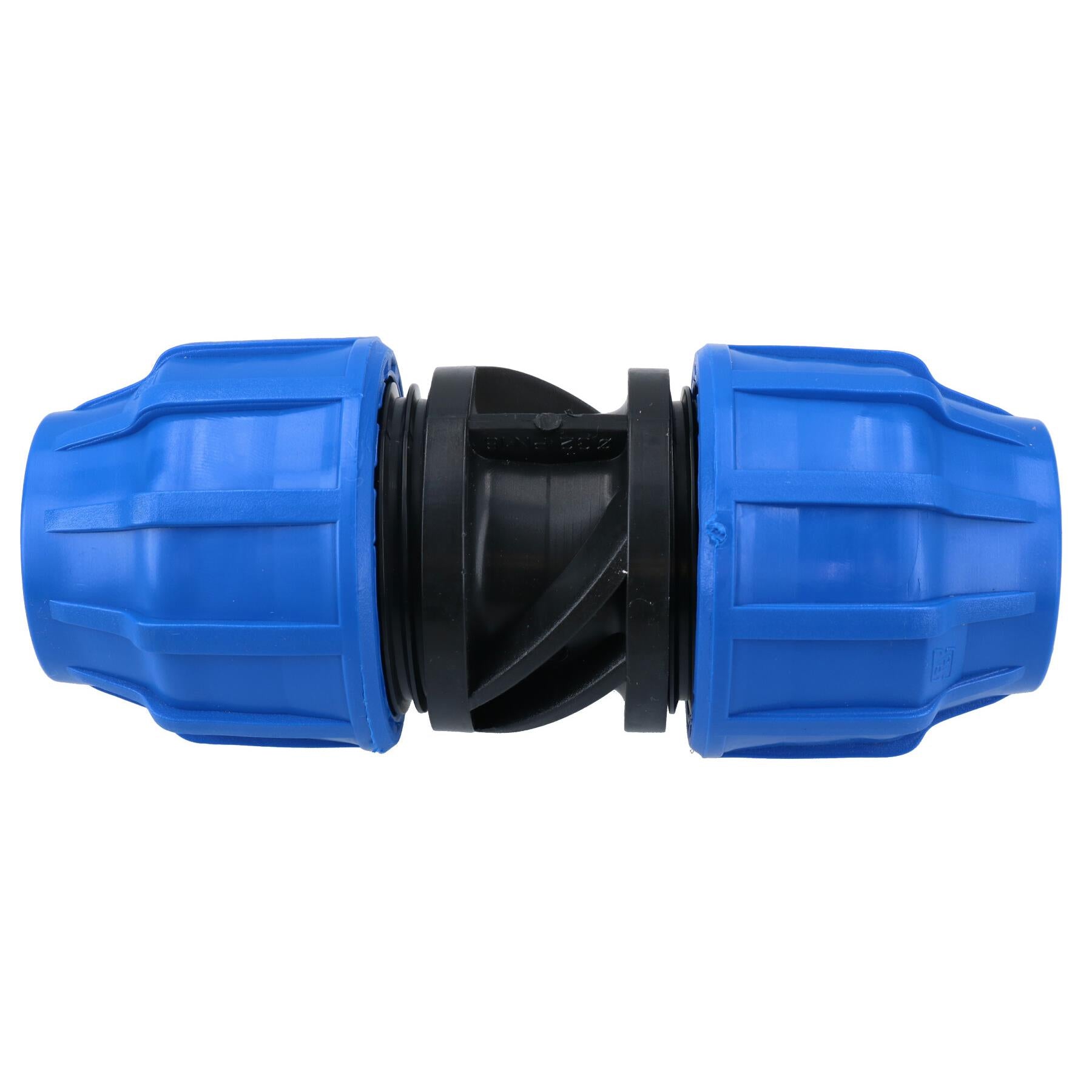

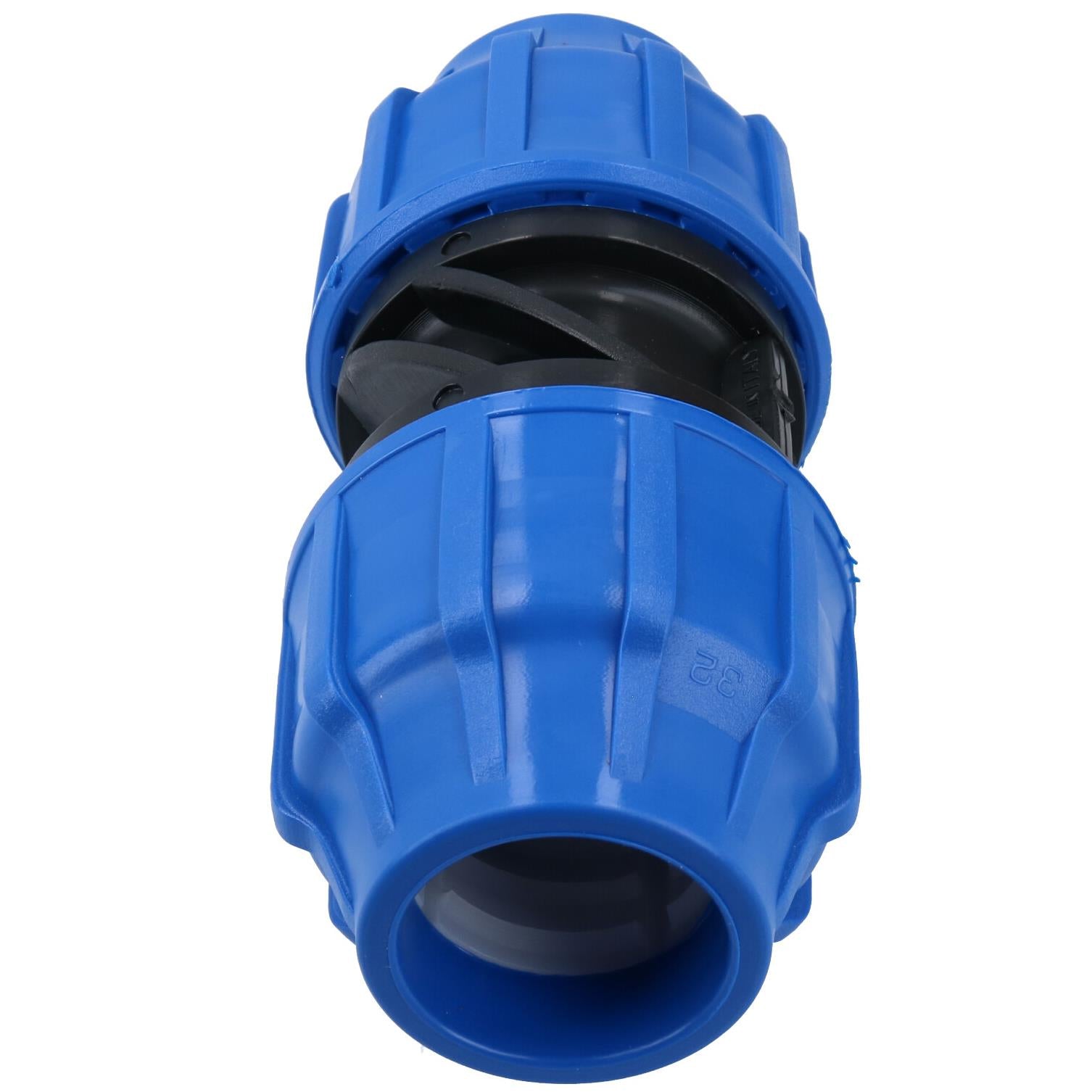

32 x 32mm MDPE Straight Pipe Compression Fitting Coupling Connector PN16

MDPE 32mm straight pipe compression coupling

Suitable for medium density polyethylene (MDPE) pipe

Both ends are the same size, to join two 32mm pipes

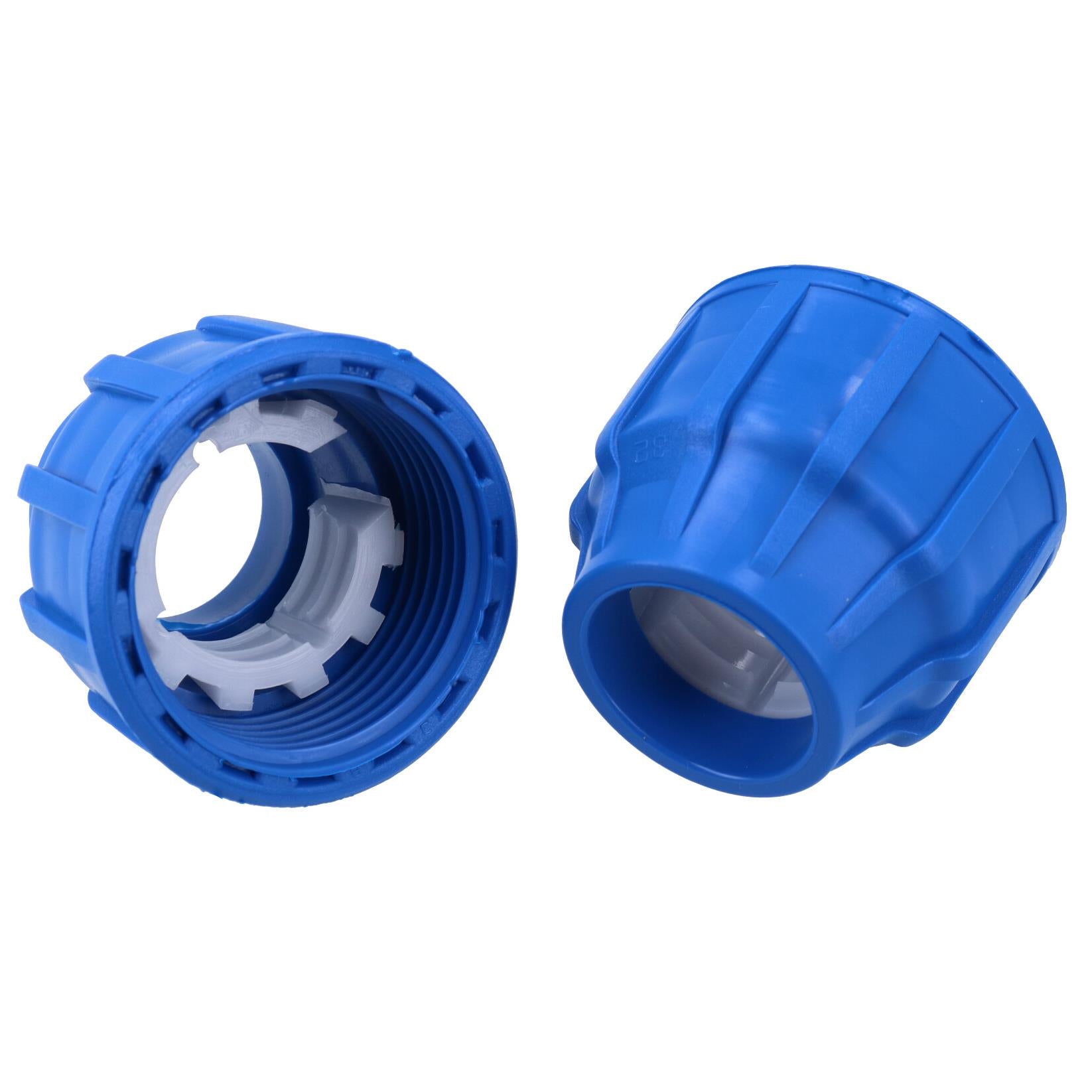

Impact-resistant nut and body

This design copes well with high levels of thermal and mechanical stress - ideal for use in underground cold water systems

SPECIFICATIONS

• 32mm straight pipe connector
• PN16 Rating
• Pressure Rating: 16 bar.
• Safety Factor: 3.
• Operating Temperature: 20°C @ 16 bar, 45°C @ 10.8 bar, 70°C @ 3.4bar.

Standards: UNI 9561-9562, UNI EN 712-713-715, UNI ISO 7/1, ISO 14236, UNI 2233.

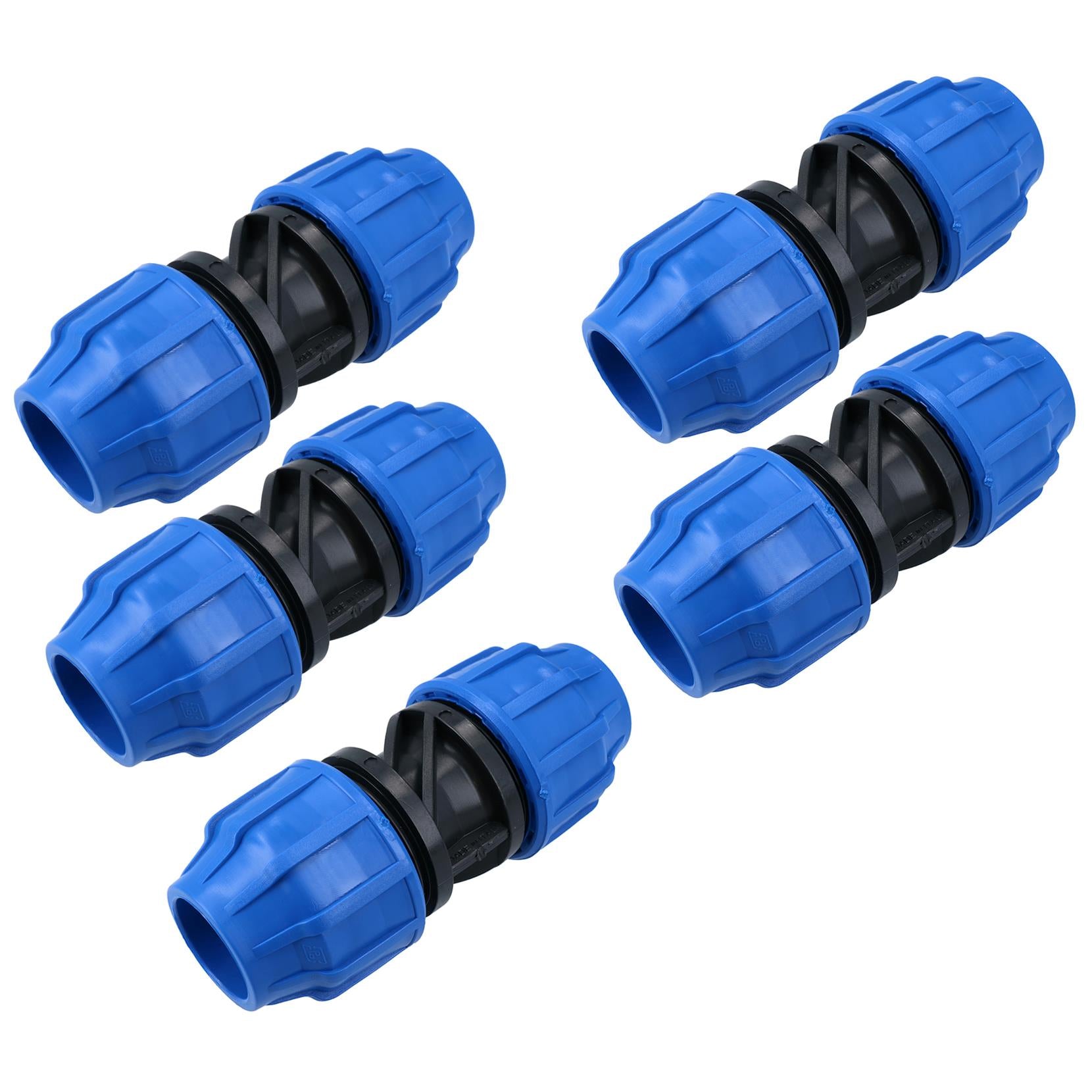

This is a multi variation listing for 4 different pack sizes, simply click on the tab above to select the correct pack size required
