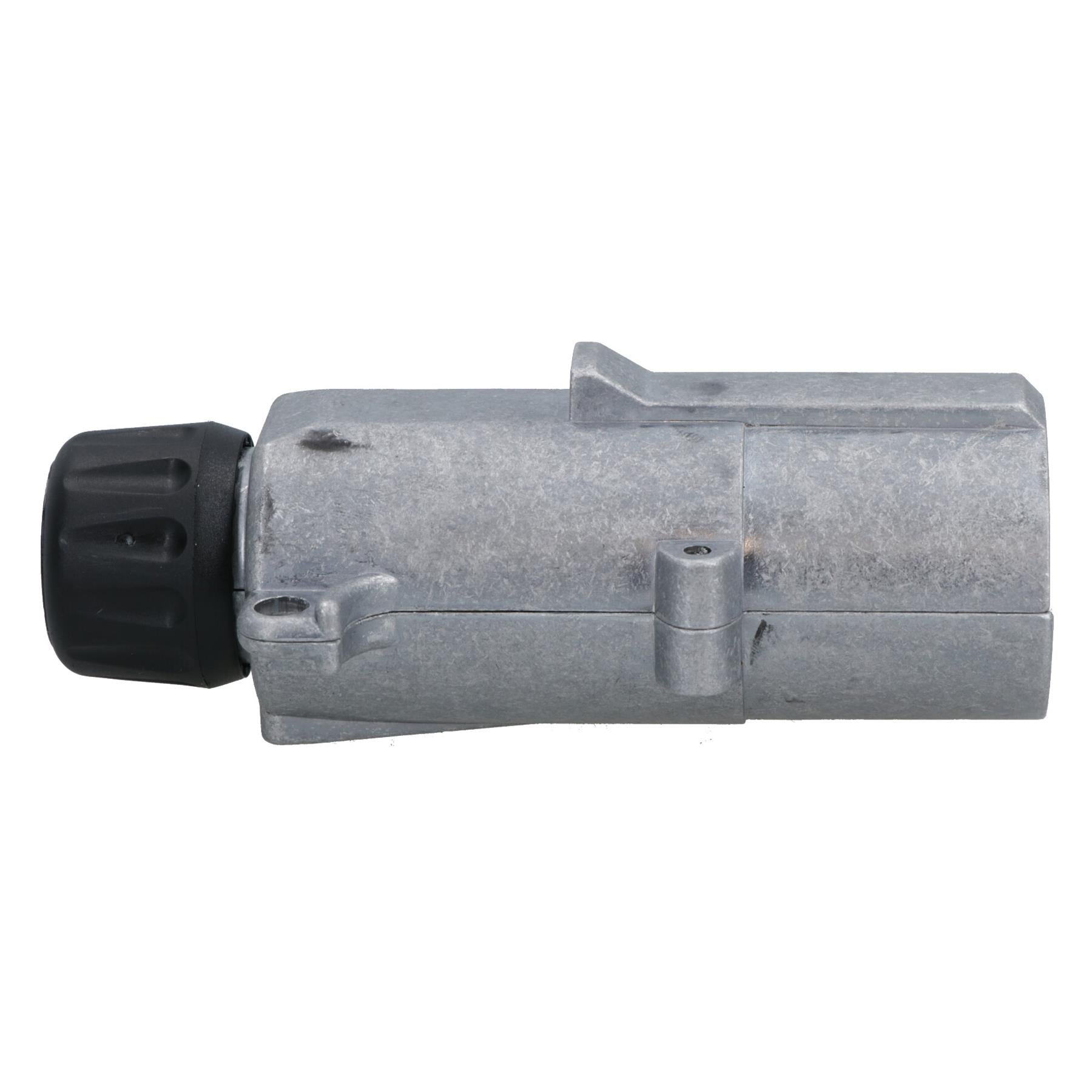

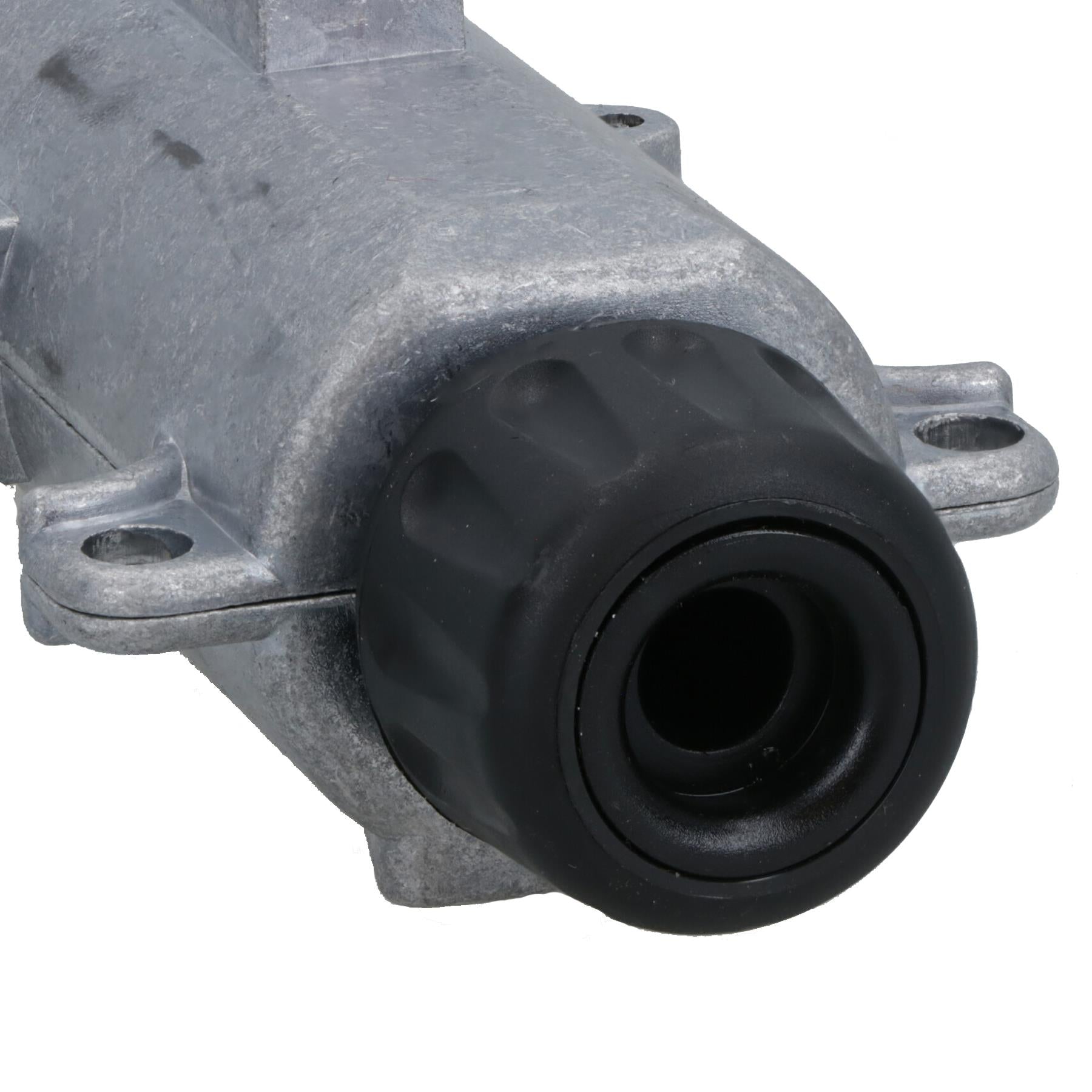

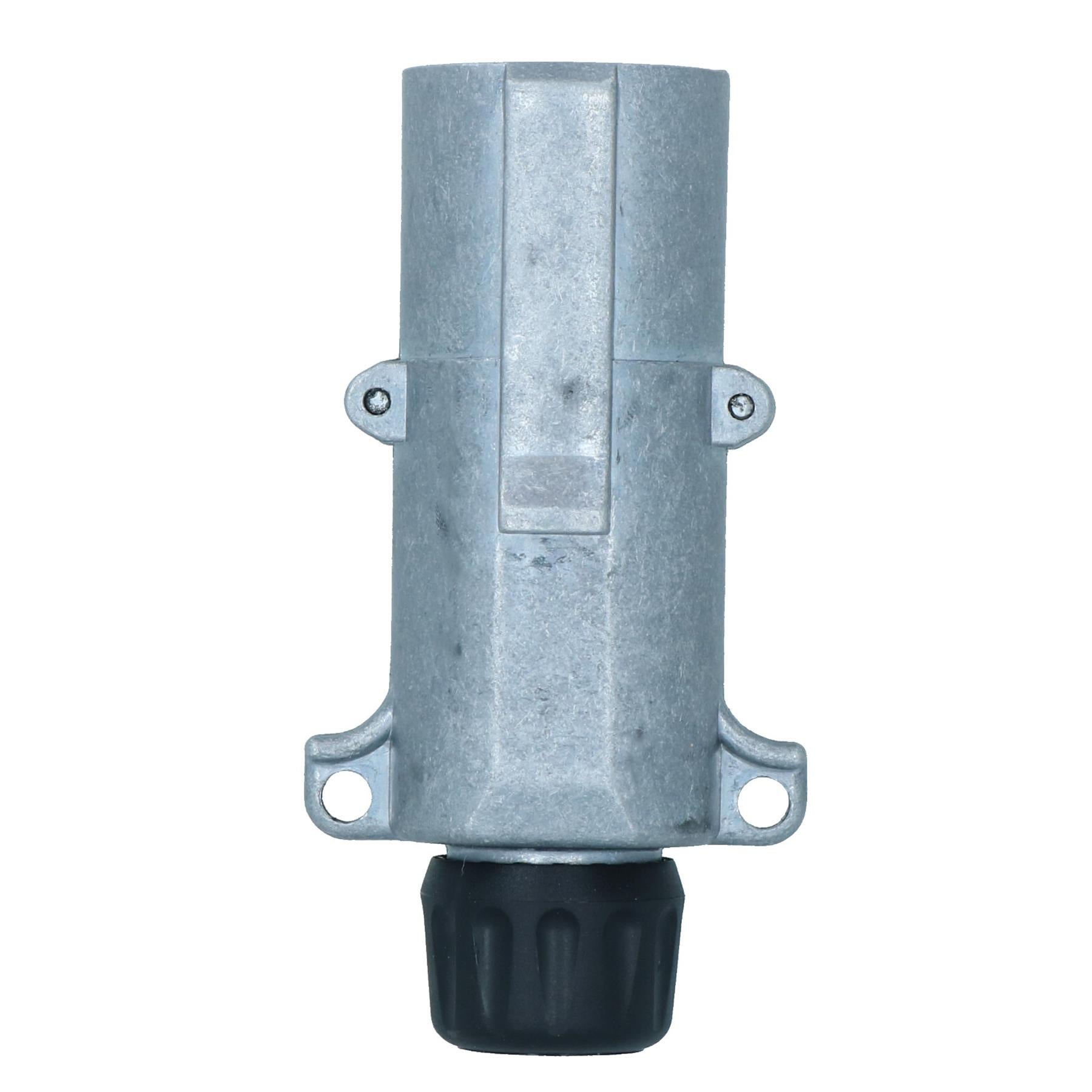

24V 7 Pin N Type Trailer Plug for HGV Commercial Vehicles Aluminium

Tough and rugged 7 pin trailer plug for commercial and larger vehicles.

24v 7 pin plug.

Strong aluminium construction.

High quality design, ideal for daily use on commercial and agricultural vehicles.

Nickel plated screw terminals for a better electrical connection and superior corrosion resistance over brass pins.

Designed for 7 core cable up to 11.5mm overall diameter.

Designed to conform to ISO 1185 standards

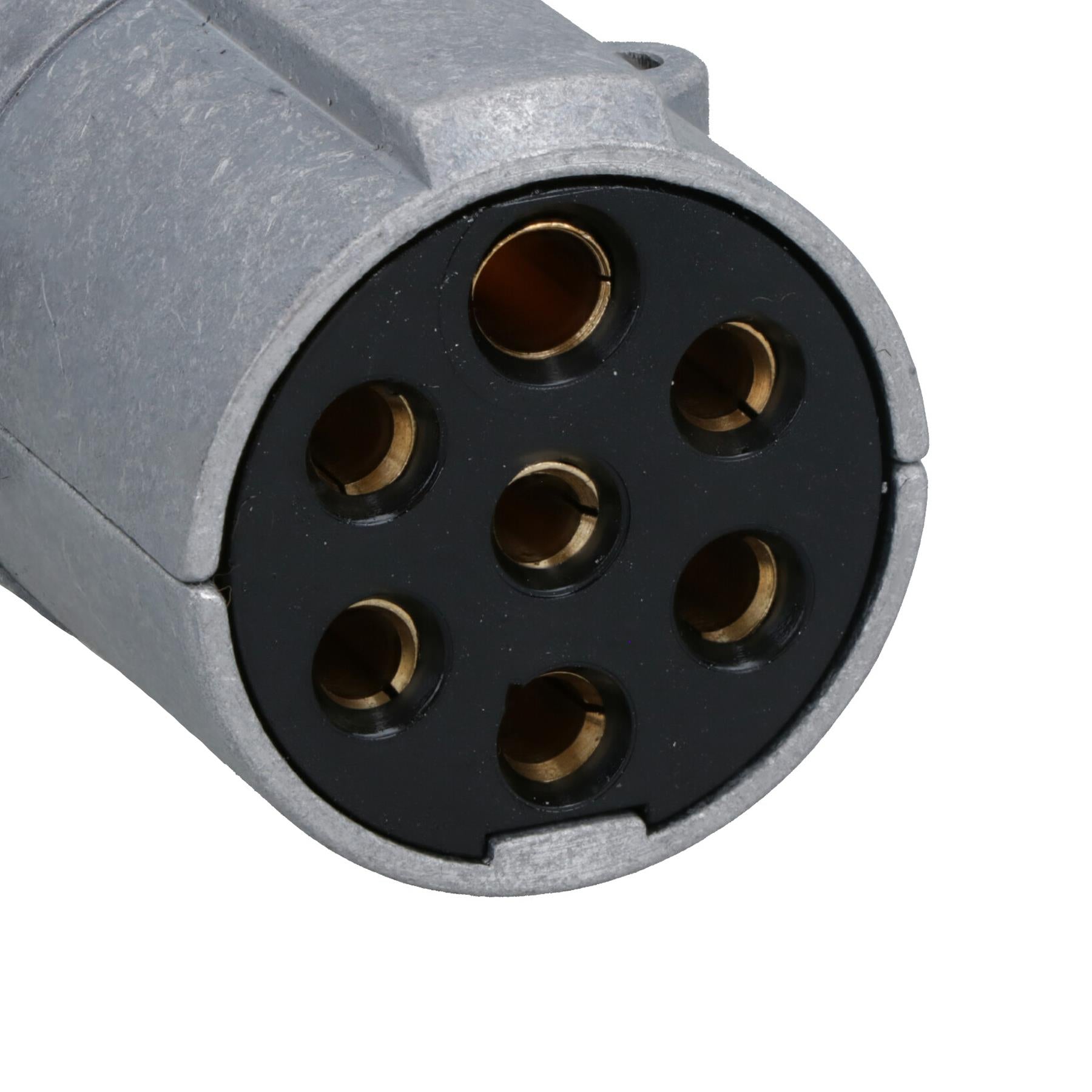

Wiring Guide
Pin 1 - White Wire - Earth.
Pin 2 - Black Wire - Left Side/Tail Light.
Pin 3 - Yellow Wire - Left Indicator.
Pin 4 - Red Wire - Stop/Brake light.
Pin 5 - Green - Right Indicator.
Pin 6 - Brown - Right Side/Tail Light.
Pin 7 - Blue - Trailer Brake Control.
