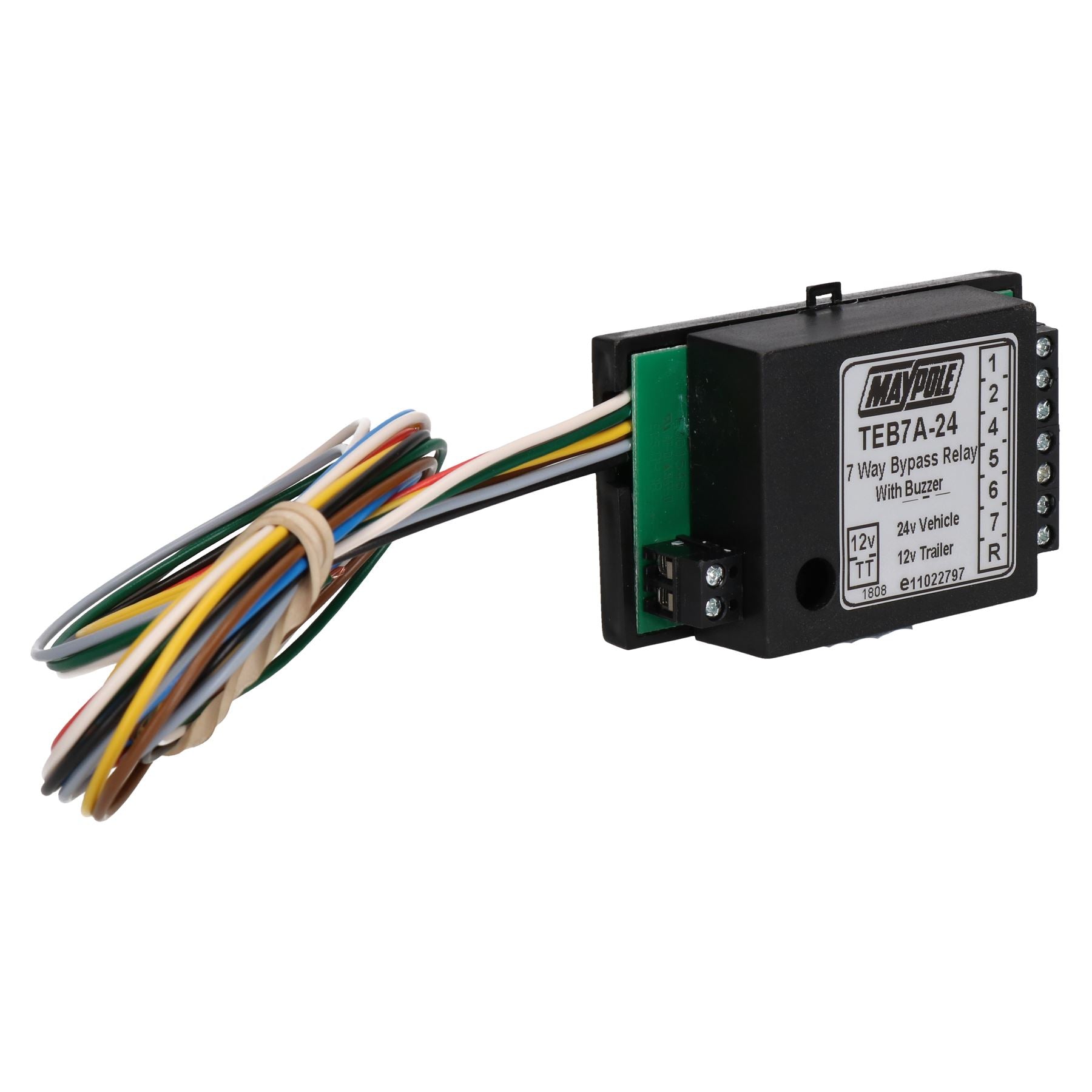

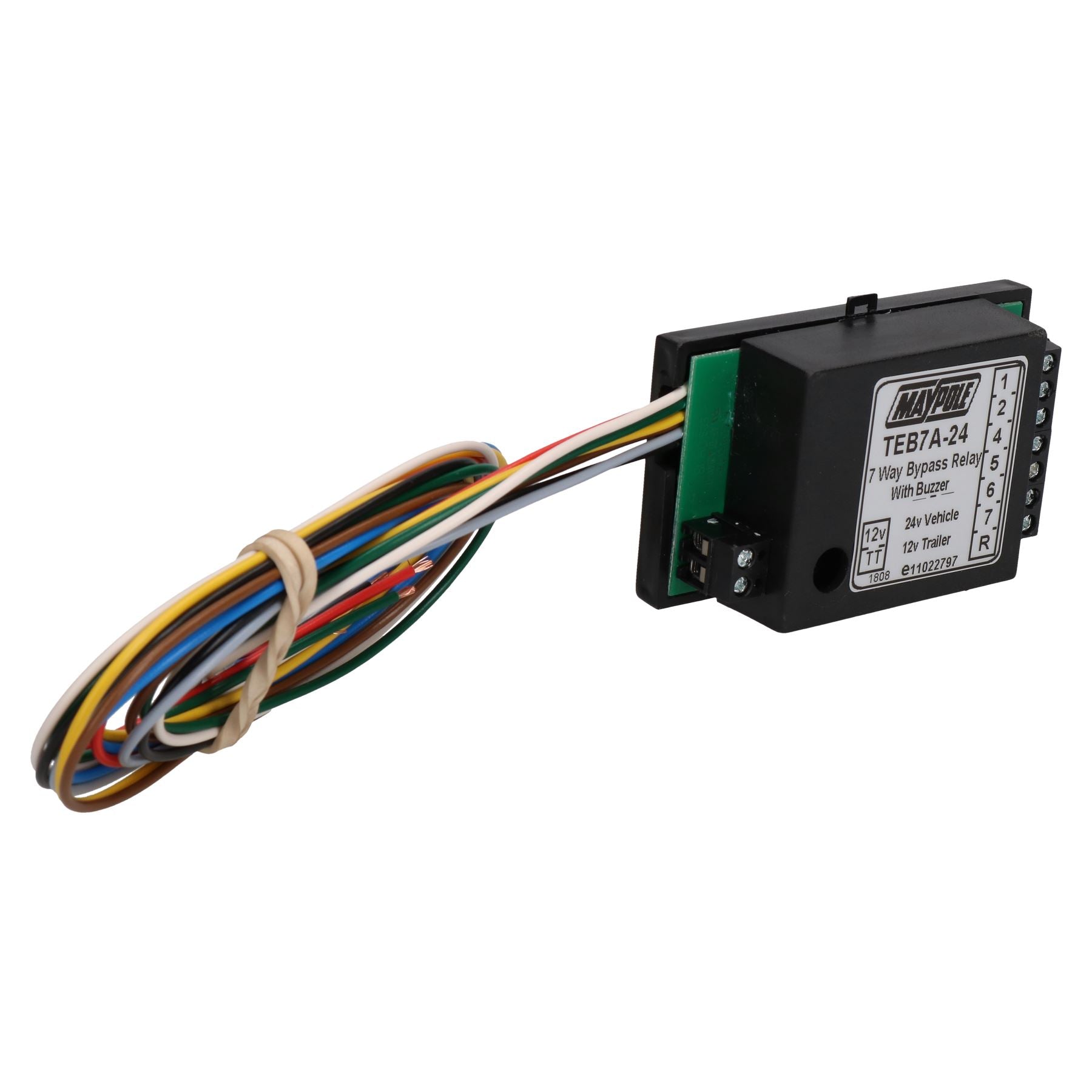

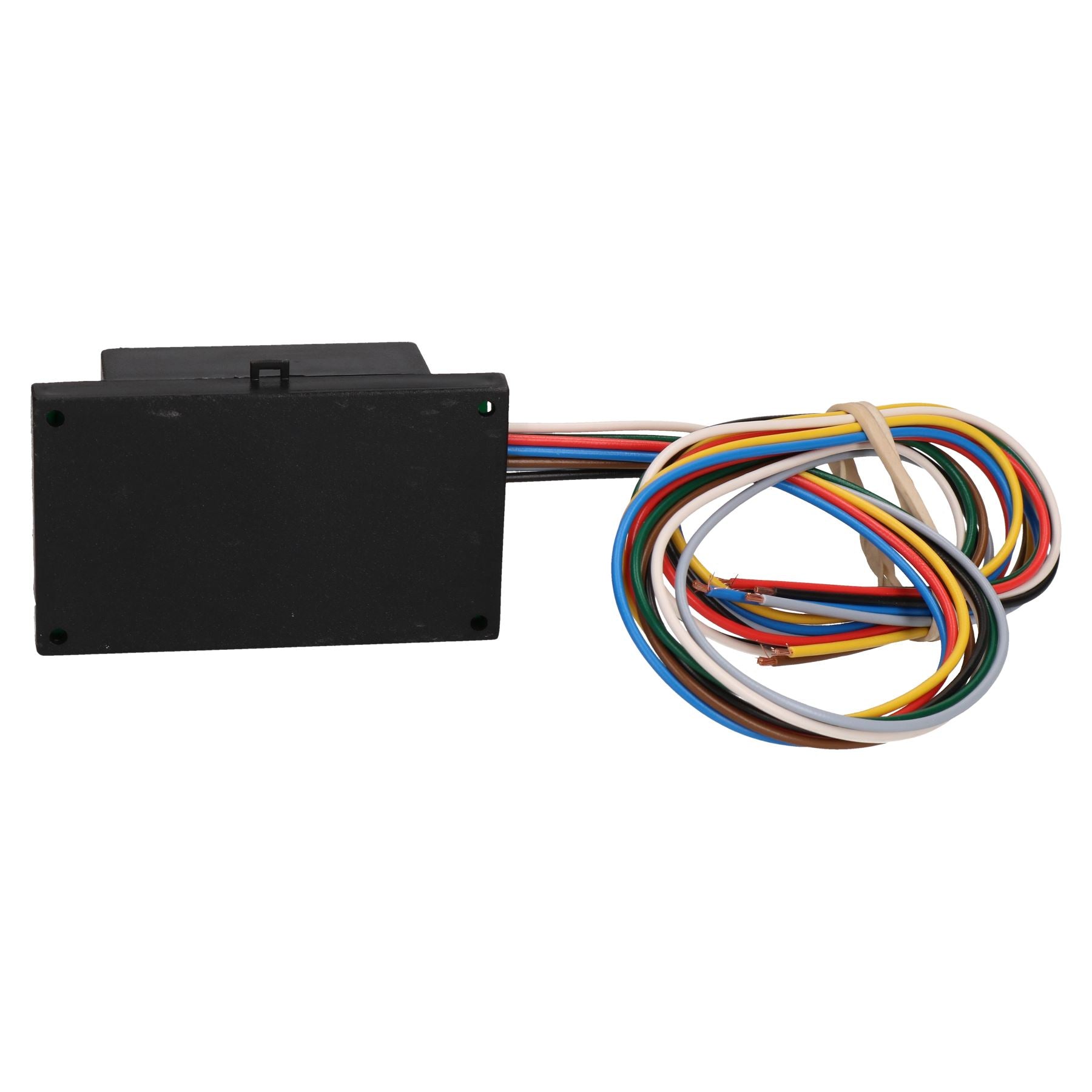

24v to 12v Towbar Electrics Bypass Relay Wiring Convertor Trailer Lights

This smart relay allows 12v Trailers to be towed behind 24v vehicles.

The relay is attached to the vehicles 24v rear lights like any normal tow bar connection. The same light signals are then output to the trailer as 12V via easy screw connections on the relay.

The relay itself requires a fused 12v feed.

The relay also features the required warning buzzer for simply installation.

Provides the folowing functions;
Left Side Light.
Right Side Light.
Left Indicator.
Right Indicator.
Brake Light.
Fog Lamp.
Reverse Light.
