Vendor: Hanford Trailers

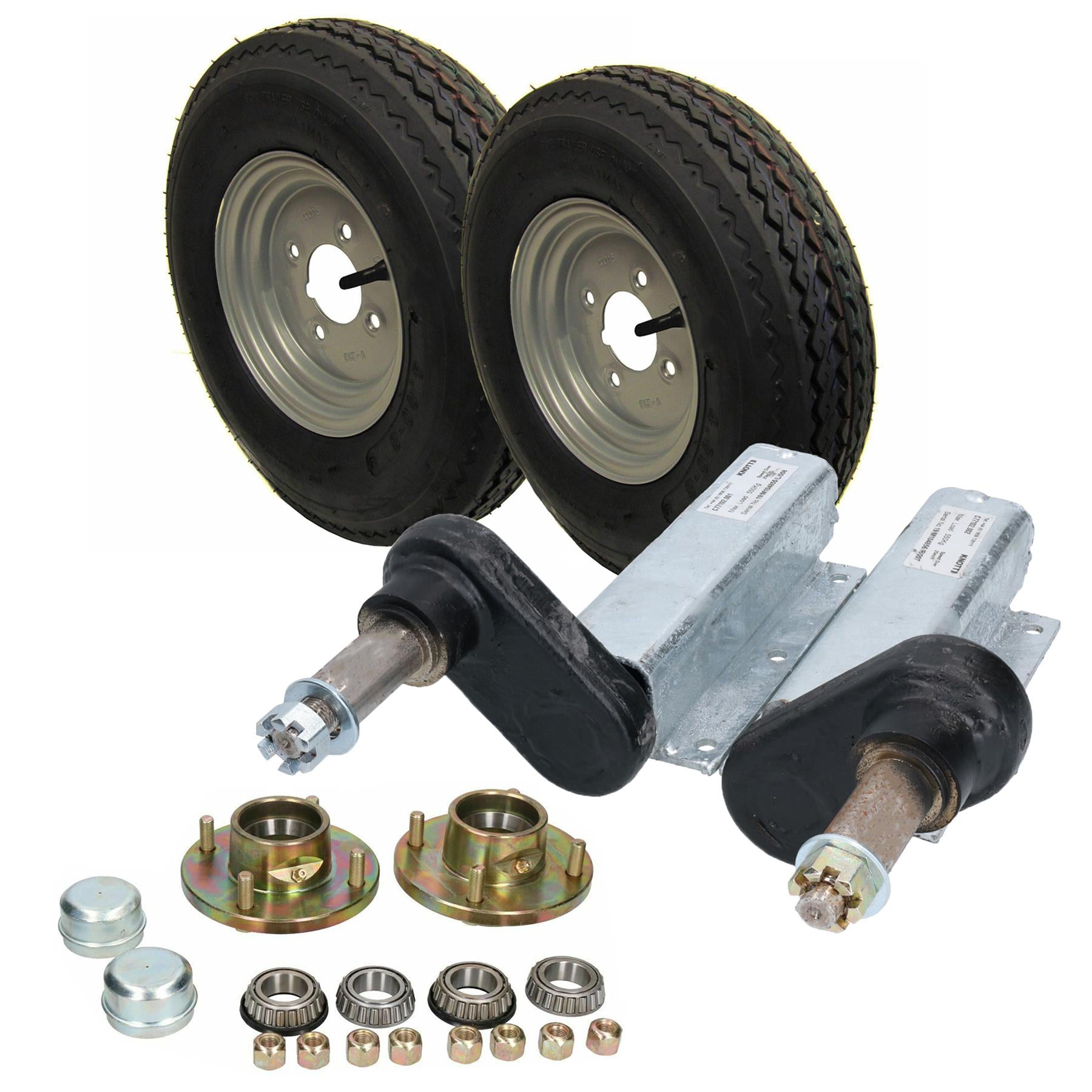

500kg Trailer Suspension Units Hub Bearing 4"PCD 4 Stud Wheel Tyre 400x8" 4PLY

Regular price £194.07 Sale price £194.07
Tax included. Shipping calculated at checkout.
In stock: 30
Wheels (Pair) Specifications:

This listing is for TWO trailer wheel and tyre.

High OEM quality, as used in our own trailer factory.

8" Steel Wheel, 4" PCD. (See our PCD guide below if you are unsure about this)

Fitted with a 4.00/4.808" Tubeless Tyre. Max load 265kg (530kg per axle) with a 4 PLY Rating.

PLEASE NOTE; These wheels will not fit an Erde or Daxara type trailer, but we do have suitable wheels for these trailers available in our shop. Click Here to view our range of wheels available in our shop.

Guide to Wheel PCD

To make sure your new wheel will fit your trailer you need to check the stud pattern size and this is known as the PCD. PCD stands for ?pitch circle diameter? and is the diameter of a circle drawn through the centre of all the wheels bolt holes. On a four stud wheel this is very easy to measure, simply by measuring the distance between the centres of two diagonally opposite wheel studs as shown below.

The PCD can be measured in millimetres or in inches. If you have any problems or are not sure please do not hesitate to contact for advice either by eBay message or by telephone on 01782 642122. If you do purchase a wheel and tyre that does not fit your trailer then we are happy to accept a return for exchange or refund as we are on any of our items. The item must be unused and you are responsible for postage costs.

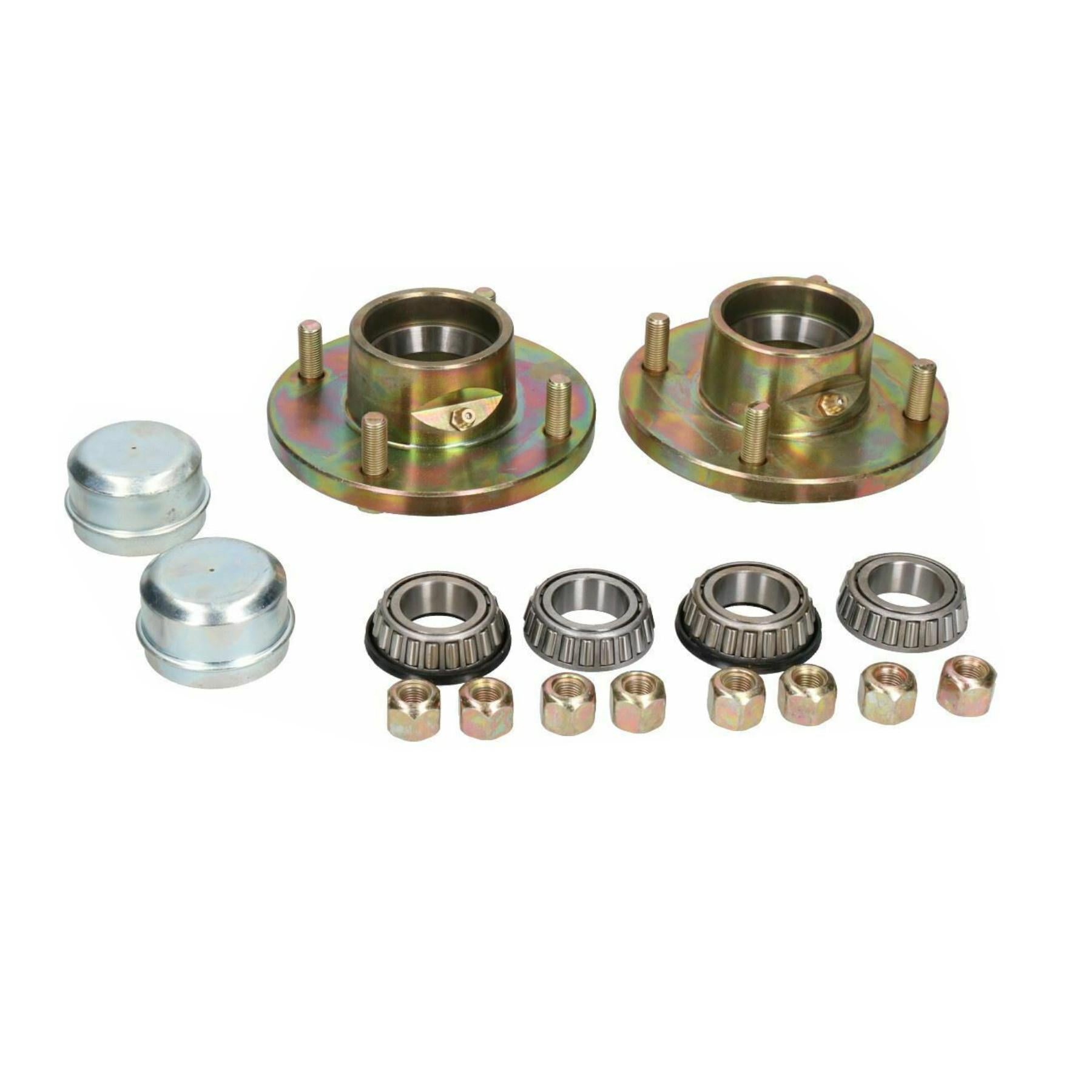

Hubs Specifictaions:

This listing is for a pair of hub sets. They are available in individually or with suspension units in our shop.

High quality cast construction.

Fits a standard 1" trailer stub axle.

4" PCD Hub, 4 stud.

Complete fitted with 3/8" wheel studs and the bearing races are already pressed into the hub, meaning no specialist tools are required to fit.


1 x Cast Hub.
1 x Outer Bearing.
1 x Inner Bearing.
1 x Hub Cap.
4 x Wheel Nuts.

Suitable stub axles and suspension units are available in our shop.

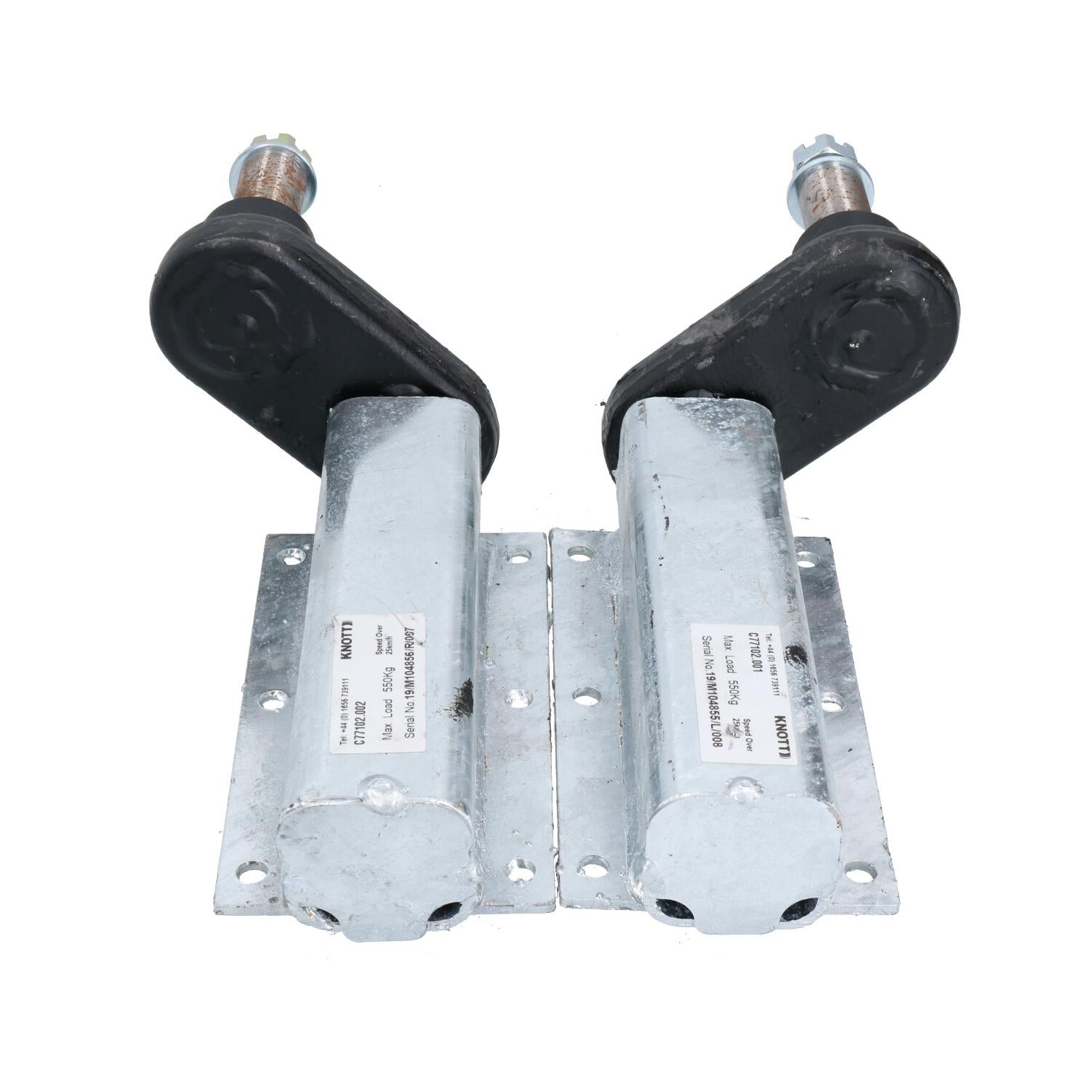

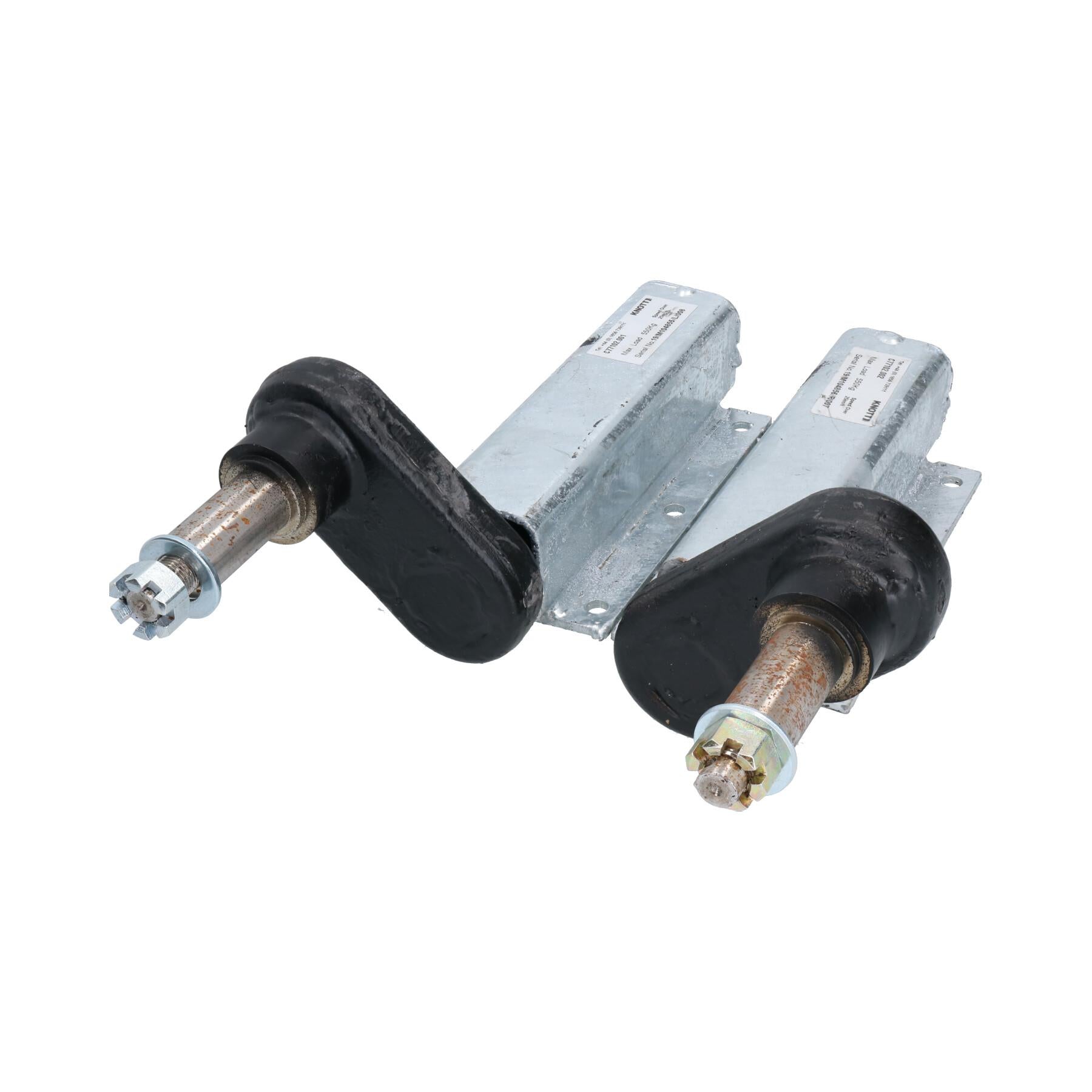

Suspension Unit Specifications:

This listing is for a pair (left and right) of suspension units.

Fitted with standard 1" trailer stub axles. Also available with hubs in our shop.

Very heavy duty construction make this suitable for daily use by business. Far tougher and long lasting than most 500kg suspension units.

Maximum weight (per pair) 500kg

Features a solid suspension arm for strength and less prone to rusting than cheap hollow box section suspension arms.

Complete with washers and castle nuts for mounting the hubs.

Other parts such as wheels, bearings, mounting plates etc. are available in our shop.

Mounting holes sizes are as pictured.
