Vendor: Hanford Trailers

6pc Gauge Depth Bore Hole Cylinder 5/16" - 6" & Digital Electronic Vernier Caliper

SKU: AT331_TE884
Regular price £28.92 Sale price £28.92
Tax included. Shipping calculated at checkout.
In stock: 10
Description

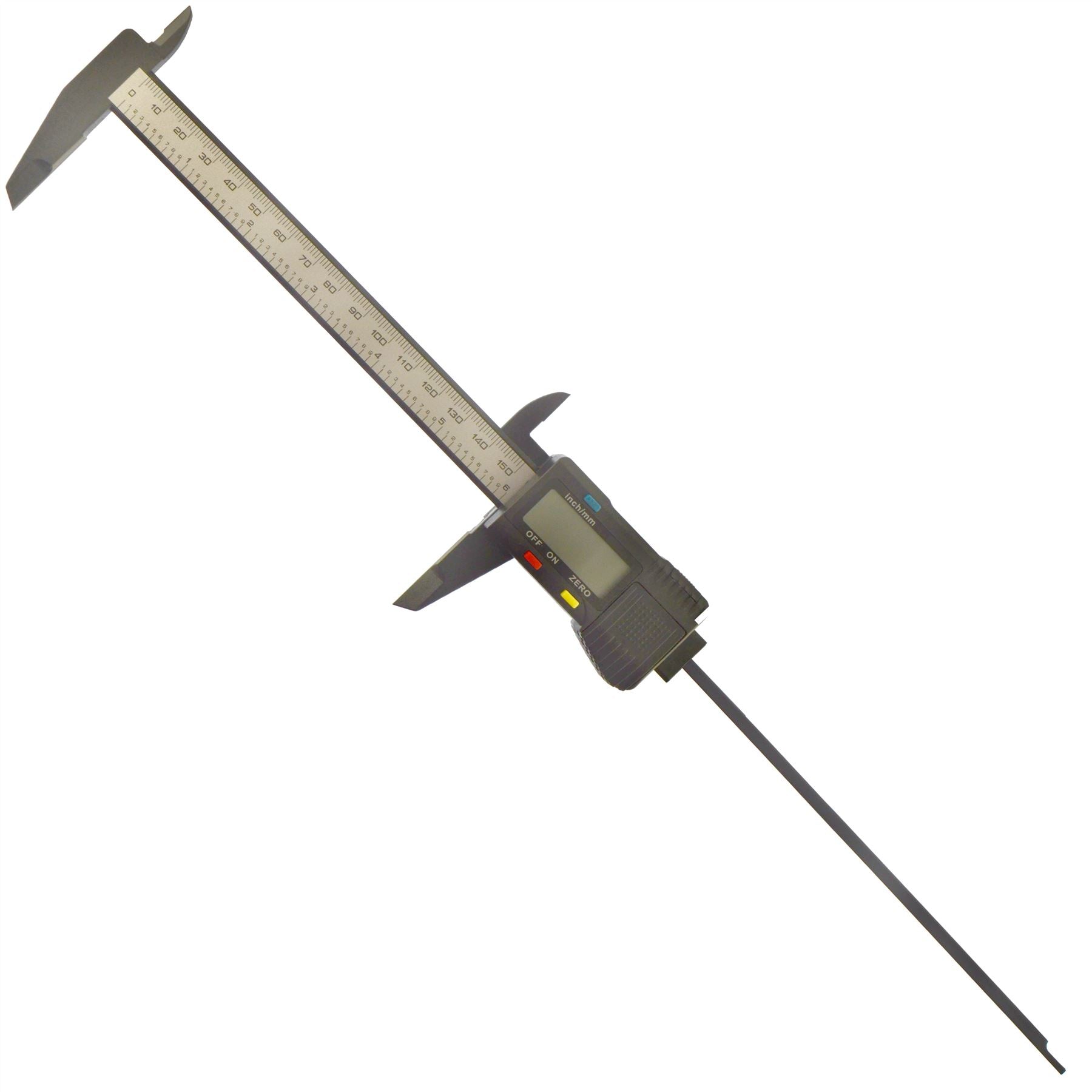

Digital Vernier Specifics:

Professional tool for commercial or occasional use

Precision made Vernier Caliper

-Features a large LCD Screen for easy use.

-Carbon fibre construction so lightweight to use but till strong enough to last

-Suitable for both internal and external sizes.

-Also can measure hole / thread depth with the built in depth stop.

-Simple way to make accurate measurements of internal and external distances up to 150mm

-Includes depth measuring tool

-Can display in metric or SAE (imperial sizes)

-Measuring range 0 - 150mm / 0 - 6"

-Accuracy plus or minus 0.02mm (0 - 100mm) range and plus or minus 0.03mm (100mm plus range)

-Accuracy is also effected in areas of very high humidity (over 80%)

Bore Gauge Specifics:

Chrome-plated steel.

Locking knurled handles and automatically self-centring plungers with constant spring tension for uniform contact pressure

Quick inside measuring of cylinder or hole bore by transferring dimension for external measurement.

Indirect measurement by outside micrometer

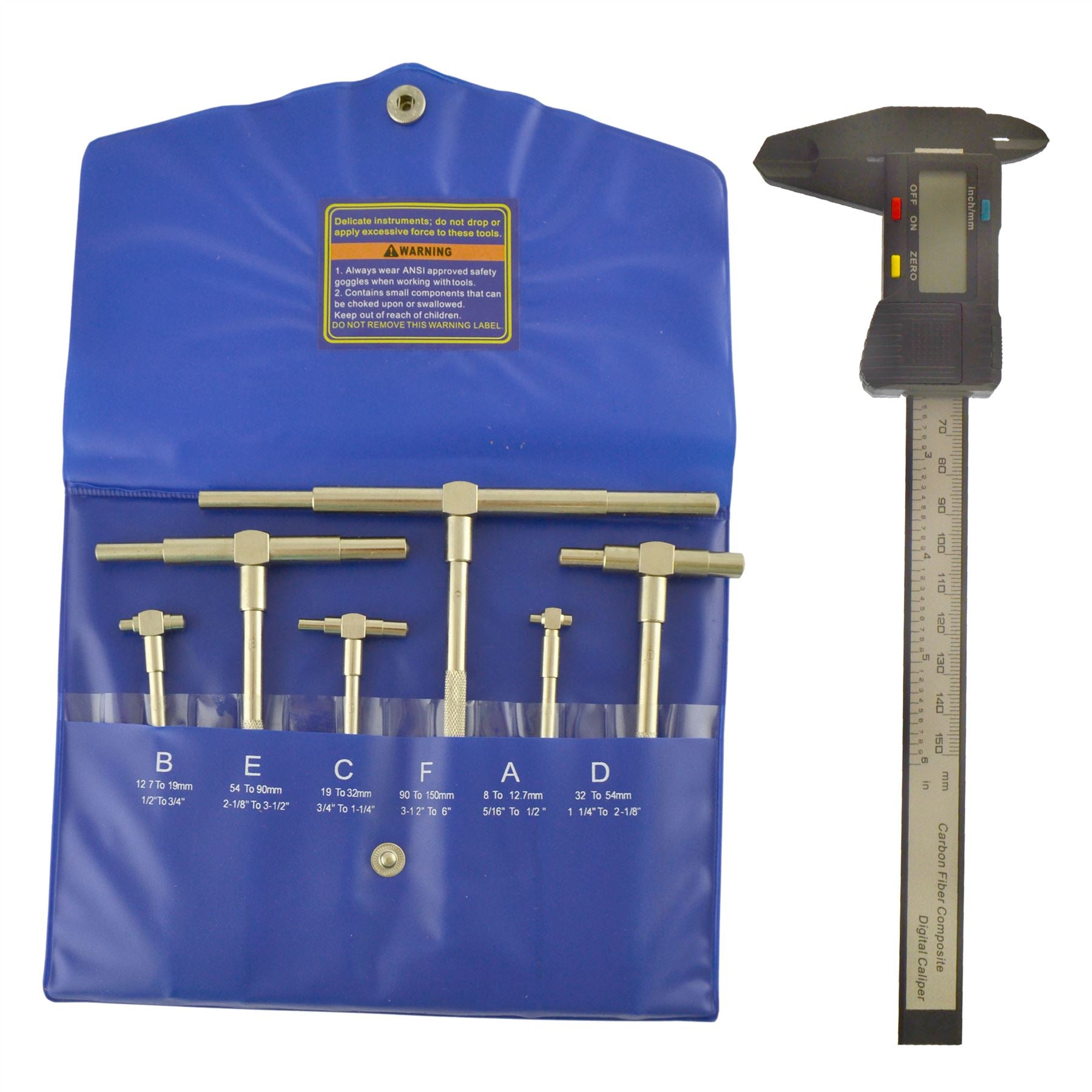

Includes:

A: 8 - 12.7mm (5/16" - 1/2")

B: 12.7 - 19mm (1/2" - 3/4")

C: 19 - 32mm (3/4" - 1-1/4")

D: 32 - 54mm (1-1/4" - 2-1/8")

E: 54 - 90mm (2-1/8" - 3-1/2")

F: 90 - 150mm (3-1/2" - 6")

Chrome plated

Range: 8 - 150mm

150mm gauges
