Ideal to convert standard bilge pumps to automatic operation. Also suitable for high water bilge alarms.
Simple two wire connection. Switch is normally open when there is no bilge water and is closes when the water level rises.
Suitable for 6-32v DC operation up to 144 watts. (12A max at 12v)
Supplied fitted with 85cm of tinned wire.
Requires 11cm by 8cm area to fit. Requires 9cm height in bilge to allow float to rise properly.
Two mounting holes are provided, but screws are not included. Where screws are used the switch should not be screwed directly into the hull. Switch can also be glued down into the bilge where screws are not appropriate.
Not suitable for AC operation.

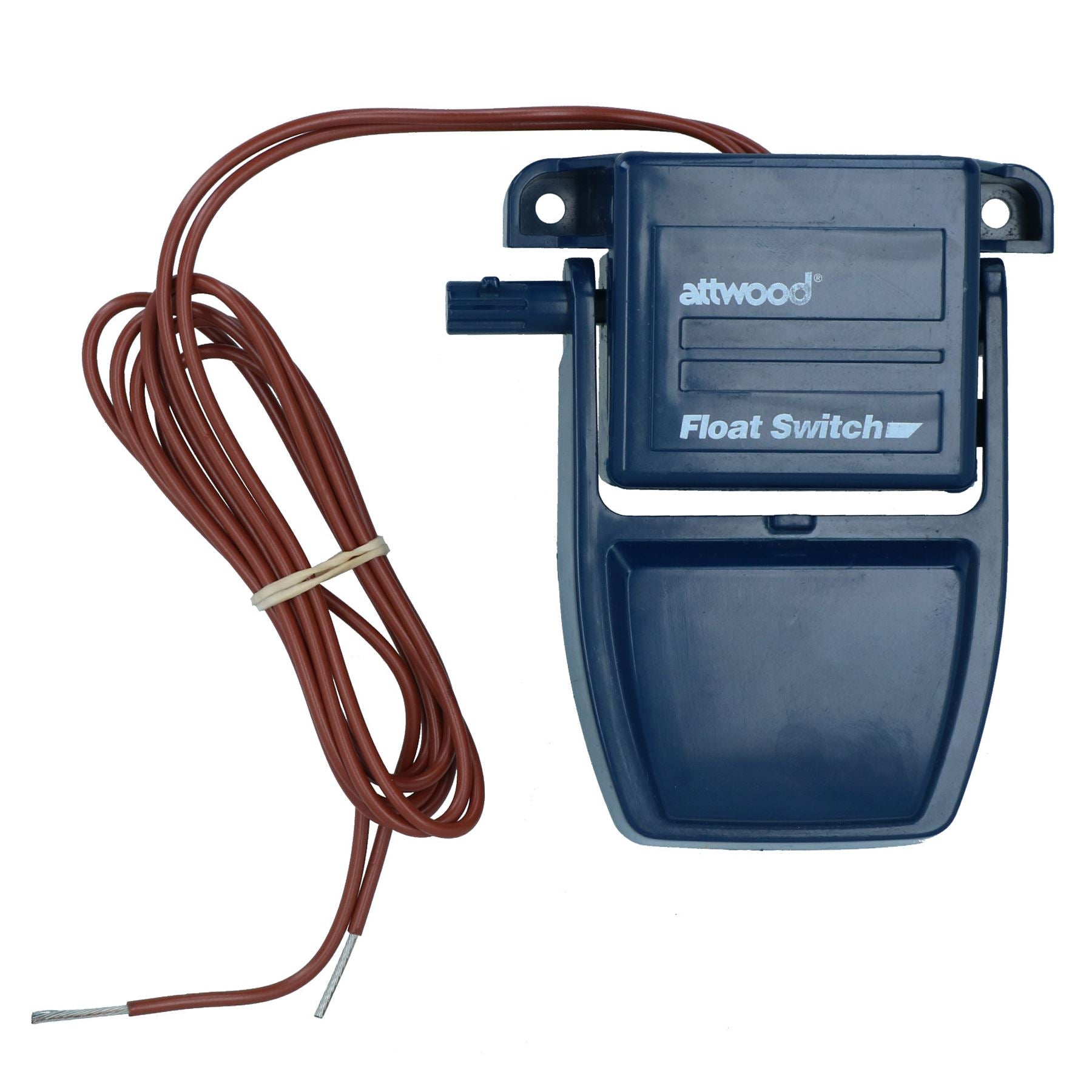

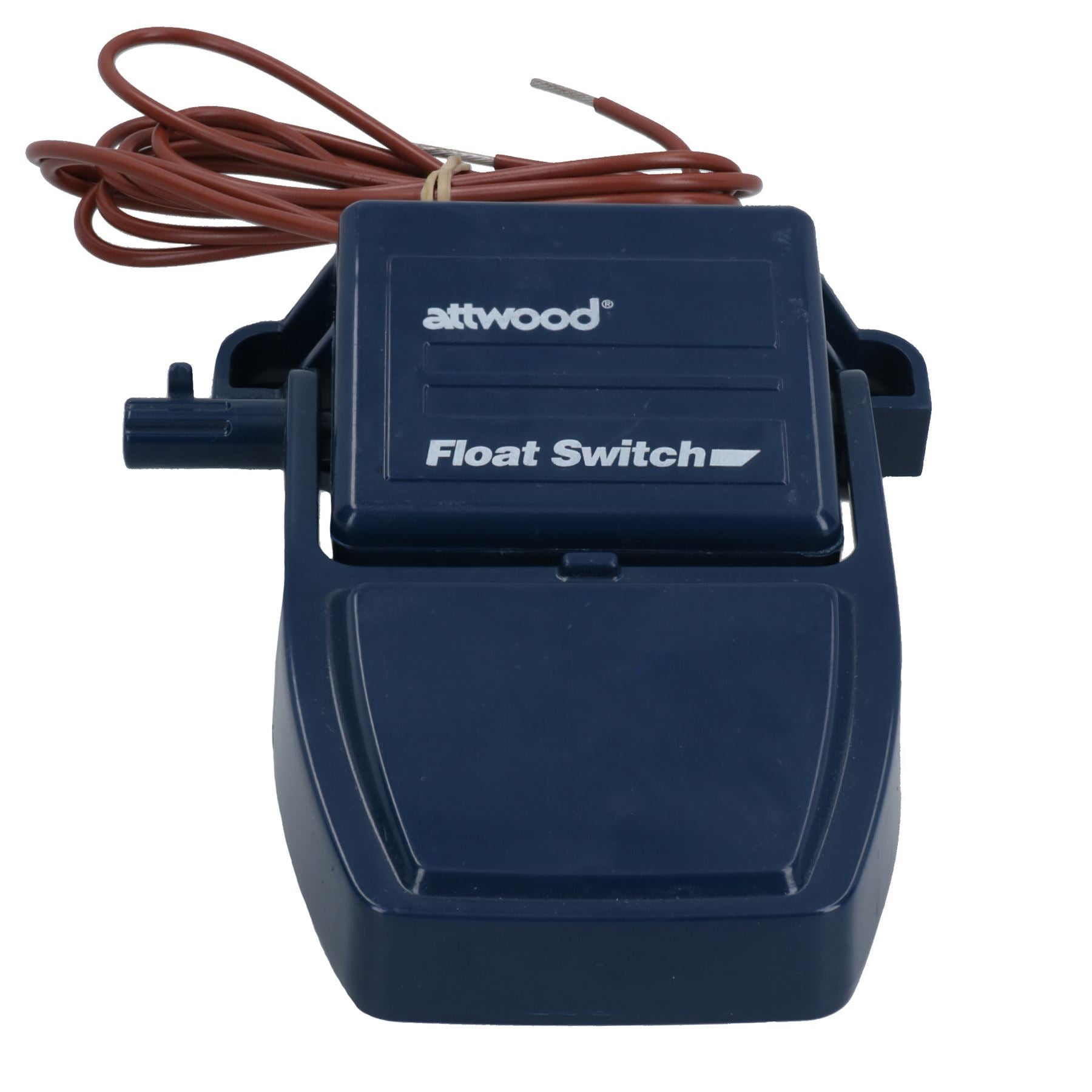

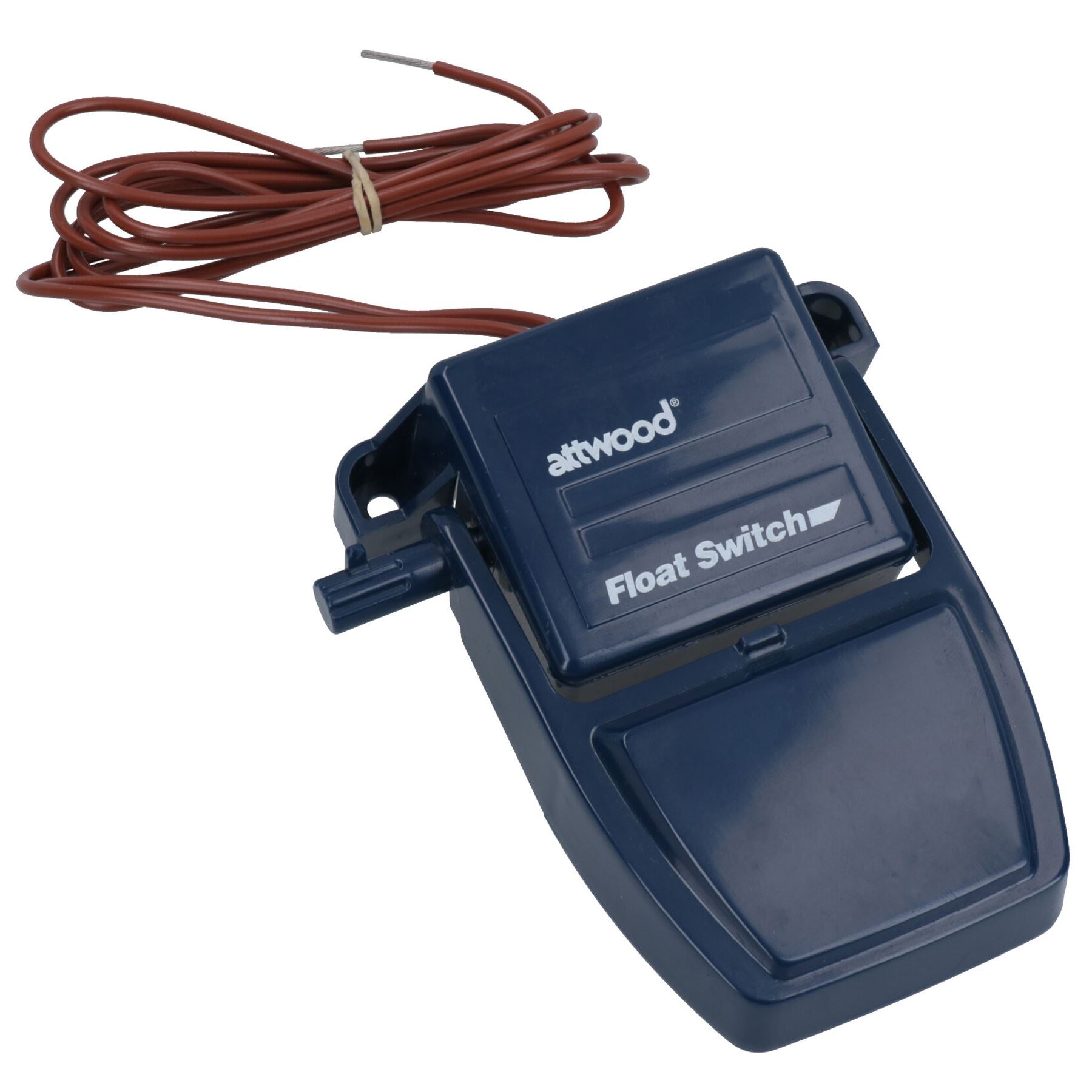

Attwood Bilge Water Float Switch Automatic Pump Control High Alarm 12v
