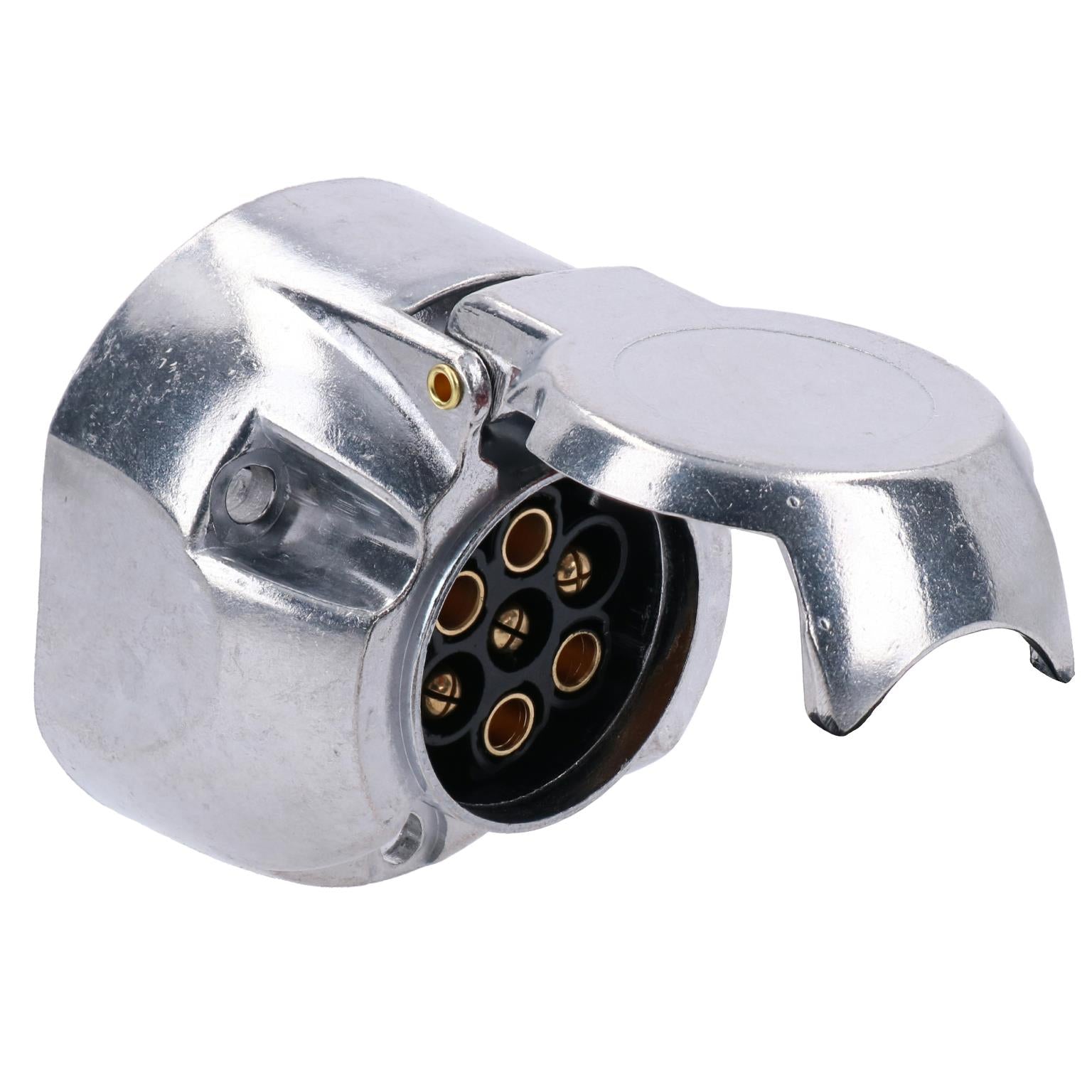

This listing is for a 7 Pin plug and socket (N type) with gasket to power caravan and trailer lights.
Ideal for new builds or for replacing damaged plugs and sockets on existing trailers.
Specifications
Screw connection inside the plug, easy for DIY replacement.
Brass pins in a durable aluminium housing with rubber seal.
Provides connections for indicators, side lights, brake lights and fog lamp.
Also available with a plastic case, please see our shop for this version.
Wiring Guide
PIN 1 Yellow Wire (Left Indicator) PIN 2 Blue Wire (Fog Lamp) PIN 3 White Wire (Earth Return) PIN 4 Green Wire (Right Indicator) PIN 5 Brown Wire (Right Side light) PIN 6 Red Wire (Brake lights) PIN 7 Black Wire (Left Side light)
This guide shows the standard wiring colours, but your trailer might not be standard.
If it is not, then you should note which pin number each wire goes to before removing the old plug or socket and connect the replacement part in the same order.
Tow Bar Electrics 7 pin 12v N Type Metal Socket Plug & Gasket Trailer Light Kit
