Vendor: Hanford Trailers

Trailer Light Wiring Kit - Large Lights, Plug, Junction Box, 5m Wire, Terminals

SKU: TR039_123_129_50_AST36
Regular price £39.40 Sale price £39.40
Tax included. Shipping calculated at checkout.
In stock: 11
Description
Includes all the parts you need to fit a pair of rear lights to a trailer.

Perfect for new builds, refurbishments etc...

Wiring guide is shown in the last picture.

Lights are approved and are 'e' marked.

Kit Includes;

Large Trailer Lights
Provides fog light, indicator, brake light, side light, retroreflector functions.
Also features a window in the side of the lamps to illuminate the number plate. (Blanking part is provided if this is not required)s
Requires single contact bulbs (3 x 21w and 1 x 10w per light) (not included)
Includes rubber grommets and mounting bolts.
Size 220mm wide, 105mm tall and 65mm deep.

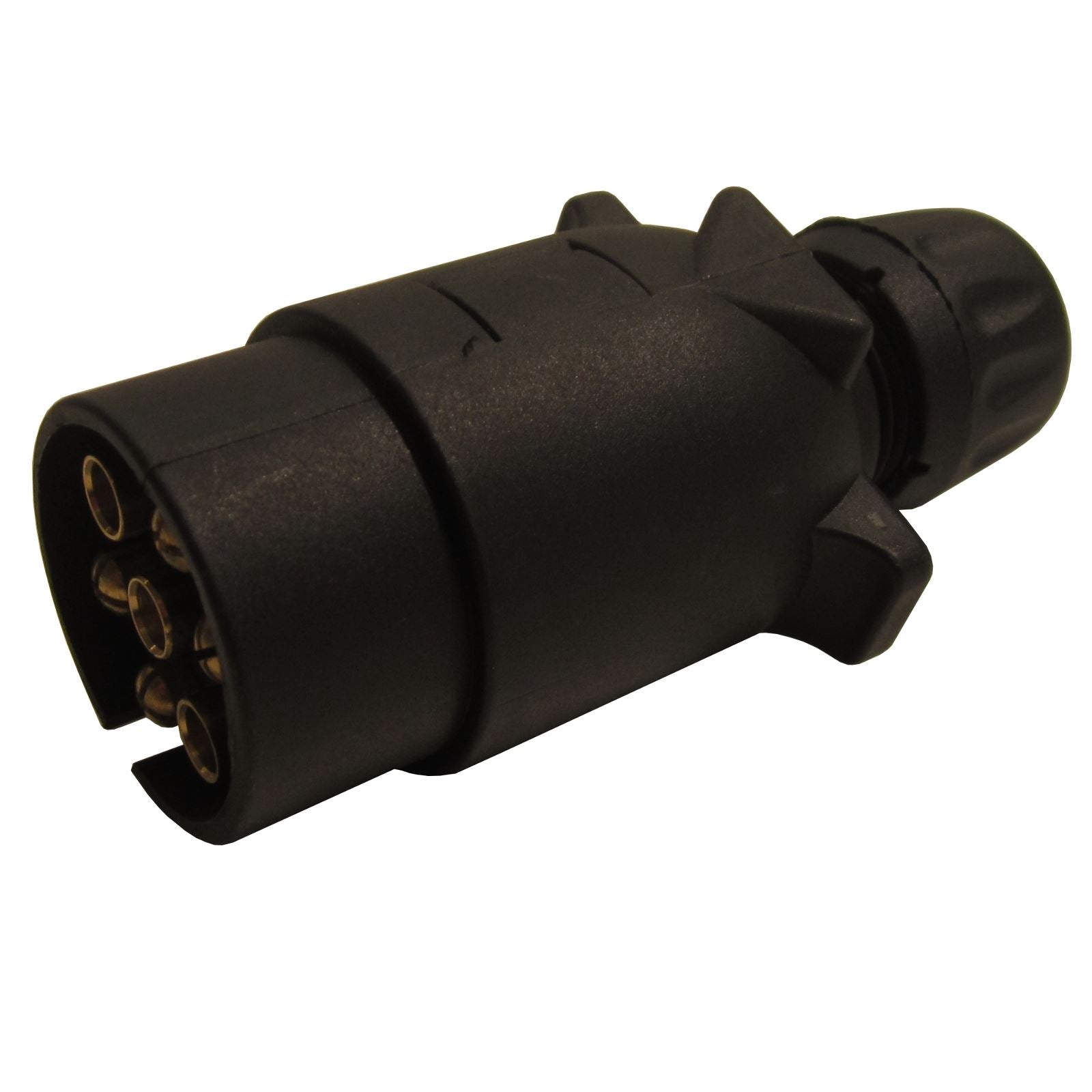

7 Pin Trailer Plug
Brass pins.
Screw Terminals for easy connection.
ABS Housing.

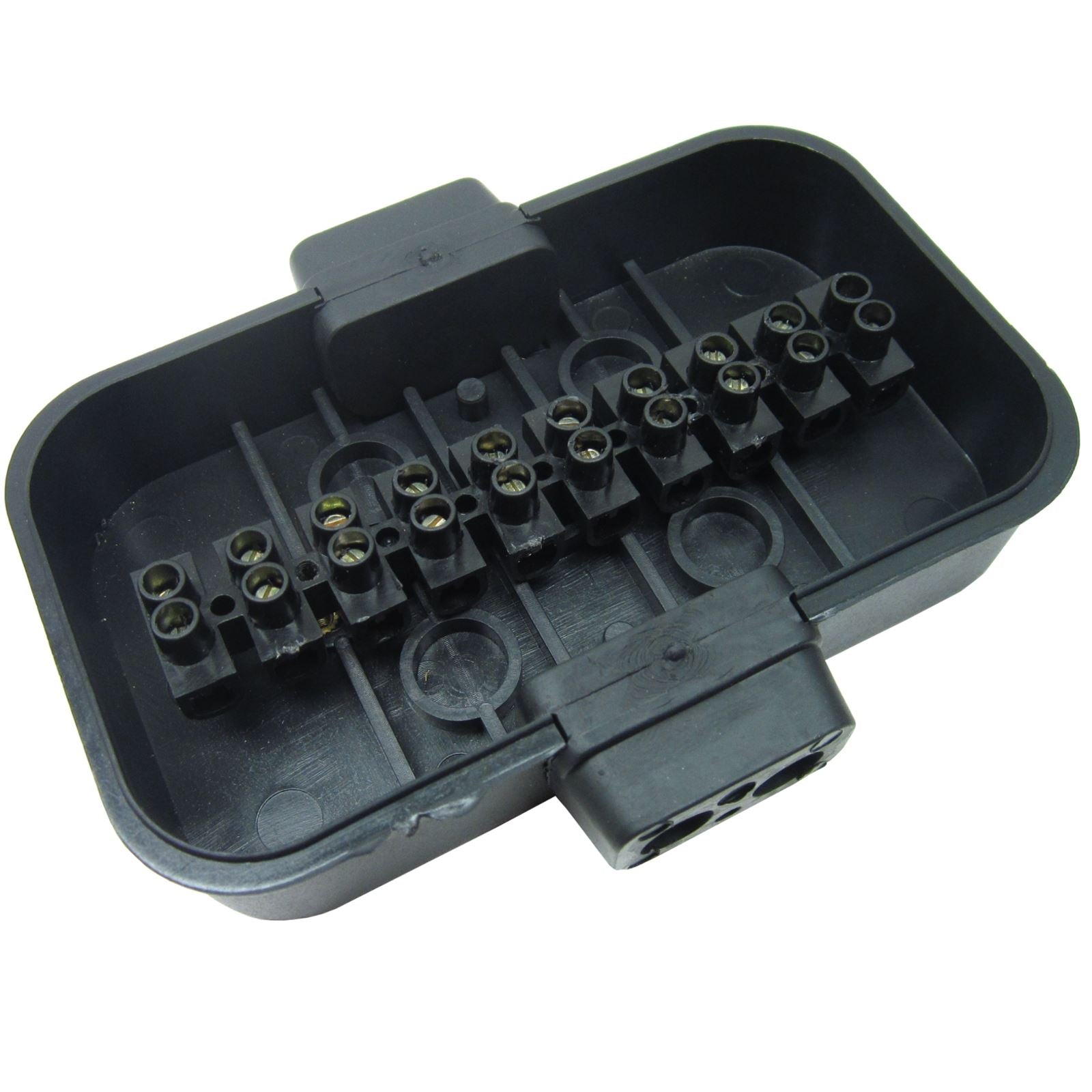

10 Way Waterproof Junction ?Box
Allows easy joining of the trailer cables from the two lights and to the plug.
Houses a 10 way terminal block.
Screw Terminals for easy wire connection.

5m 7 Core Trailer Wiring Cable.
Automotive grade.
Tough outside insulation provides good protection against rubbing and chafing.
Internal wire colours yellow, blue, white, green, brown, red and black.
Suitable for up to 4A.

25 x Female Crimp Spade Terminals
Easily crimped on to the wire ends.
The most common connection to trailer lights.
